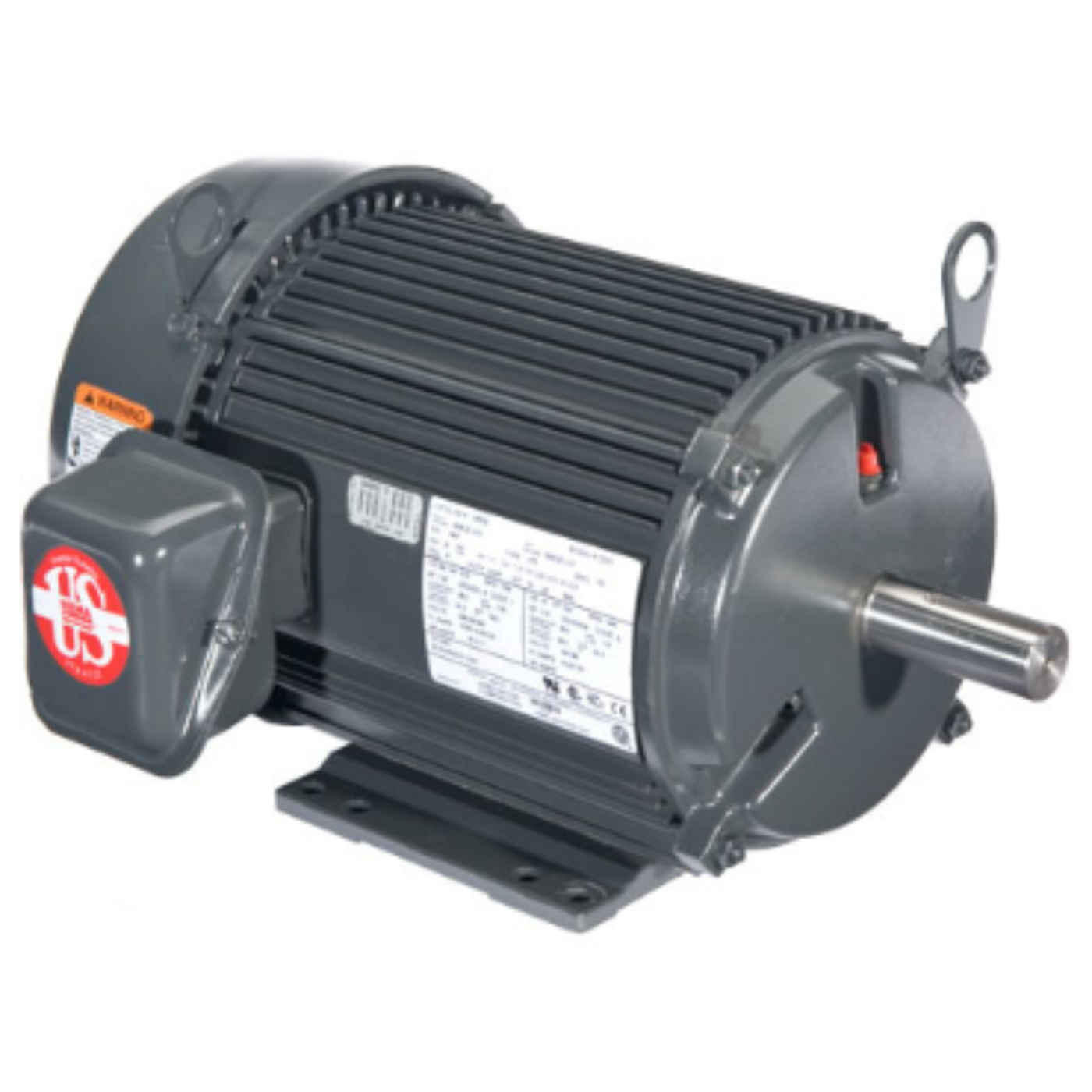

U.S. Motors U7P1AF General Purpose Three Phase TEFC Unimount NEMA Premium Efficient - IE3 Motor - U7P1AF
The U.S. Motors U7P1AF is a general-purpose three-phase motor with a TEFC design. It delivers seven and a half hp and operates at three thousand six hundred rpm. This motor is ideal for various industrial applications including fans, blowers, and pumps.
Product Highlights
This motor features durable aluminum construction and a continuous duty rating. It is suitable for a range of industrial equipment.
Features
- Efficiency: Premium Efficient
- Voltage Rating: 208-230/460
- Mounting Type: Horizontal - Footed
Specifications
| Full Load RPM |
3510 RPM |
| Efficiency Group |
Premium Efficient |
| Full Load Efficiency |
89.5% |
| Insulation |
F |
| Motor Application |
General Purpose |
| C Dimension |
17.2 inches |
| Phase |
Three Phase |
| Poles |
2 |
| Frame Material |
Aluminum |
| Duty |
Continuous Duty |
| Enclosure |
TEFC (Totally Enclosed Fan Cooled) |
| Service Factor |
1.25 |
| Weight |
70 pounds |
| Brand |
U.S. Motors |
| MPN |
U7P1AF |
| Part Number |
101459438 |
| Availability |
Available to Order |
What our Experts Think
-
Premium Efficiency: The U7P1AF is an IE3 NEMA Premium Efficiency motor, designed to deliver high performance while minimizing energy consumption, helping to reduce operating costs.
-
Durable TEFC Design: The Totally Enclosed Fan Cooled (TEFC) enclosure protects the motor from external contaminants, ensuring long-lasting performance even in harsh environments.
-
Three Phase Power: Perfect for industrial applications requiring stable, continuous power for tasks like pumping, ventilation, and material handling.
-
Unimount Versatility: The Unimount design allows for easy installation, providing flexibility in mounting while saving valuable space in tight environments.
-
Energy Savings: With premium efficiency, the U7P1AF is an excellent choice for businesses focused on reducing their carbon footprint and energy costs.
Q&A
Q: What is the U.S. Motors U7P1AF motor designed for?
A: The U7P1AF is a general-purpose, three-phase TEFC motor designed for high-efficiency performance in industrial applications such as pumps, fans, compressors, and conveyors.
Q: What makes the U7P1AF motor energy efficient?
A: The U7P1AF motor is rated as NEMA Premium Efficient (IE3), meaning it exceeds the minimum efficiency standards, reducing energy consumption and lowering operating costs over time.
Q: What type of enclosure does the U7P1AF motor have?
A: The motor has a TEFC (Totally Enclosed Fan Cooled) enclosure, which protects internal components from dust, dirt, and moisture, ensuring reliable performance even in harsh industrial environments.
Q: Where is the U7P1AF motor best used?
A: The U7P1AF motor is ideal for use in heavy-duty industrial applications like HVAC systems, pumps, fans, and conveyors where high-efficiency operation is critical to reduce energy consumption and improve performance.
Maintenance Tips
-
Keep the Motor Clean:
Regularly clean the motor housing to prevent dust, dirt, and debris from accumulating. This will help maintain efficient cooling and performance. Use a soft cloth and non-abrasive cleaner.
-
Inspect Electrical Connections:
Routinely check all electrical connections for tightness and signs of wear or corrosion. Loose or damaged connections can lead to overheating or motor failure.
-
Monitor Operating Temperature:
Ensure that the motor operates within the recommended temperature range. Overheating can reduce motor efficiency and lifespan. Use temperature sensors if needed to keep track of operating conditions.
-
Lubricate Bearings as Required:
Follow the manufacturer's recommendations for bearing lubrication intervals and types of lubricants. Proper lubrication reduces friction and wear, improving the motor's longevity.
-
Check for Vibration and Noise:
Excessive vibration or unusual noises may indicate misalignment, imbalance, or bearing wear. Regularly inspect the motor for these issues and correct them promptly to avoid further damage.
-
Ensure Proper Ventilation:
As a TEFC (Totally Enclosed Fan Cooled) motor, it requires proper ventilation for optimal cooling. Ensure the area around the motor is free from obstructions that could restrict airflow.
-
Inspect for Alignment Issues:
Ensure the motor is properly aligned with the driven load. Misalignment can cause stress on the motor and connected equipment, leading to premature failure.
-
Monitor Load Conditions:
Do not overload the motor. Operating beyond the motor’s rated load can cause overheating, excessive wear, and reduce its efficiency. Regularly check the load to ensure it's within the motor's capacity.
