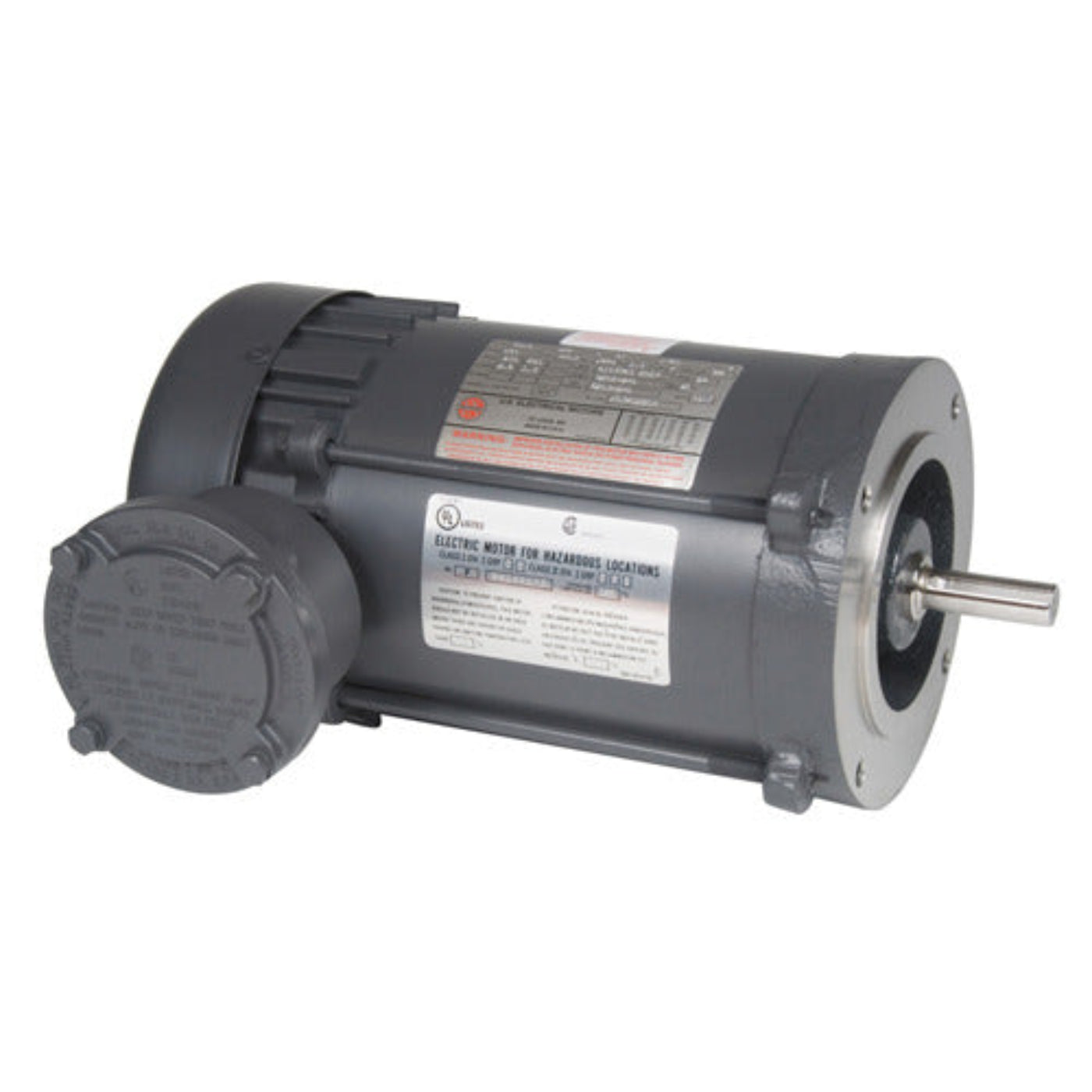

U.S. Motors X5P2BCR Explosion Proof Three Phase TEFC Horizontal - Footless Motor - X5P2BCR
The U.S. Motors X5P2BCR is an explosion-proof electric motor designed for demanding environments. This motor operates on three-phase power and delivers five horsepower at one thousand eight hundred RPM. It utilizes a totally enclosed fan-cooled (TEFC) enclosure, making it suitable for hazardous locations.
Product Highlights
Engineered for safety in explosive atmospheres, the U.S. Motors X5P2BCR is ideal for use in chemical plants, refineries, and other industrial facilities requiring reliable power without the risk of ignition.
Features
- Rated for continuous duty
- Voltage options of two hundred thirty or four hundred sixty volts
- Mounting type is horizontal and footless
Specifications
| Brand |
U.S. Motors |
| Model (MPN) |
X5P2BCR |
| Motor Application |
Explosion Proof |
| Full Load RPM |
1800 RPM |
| Voltage Rating |
230/460V |
| Phase |
Three Phase |
| Mounting |
Horizontal - Footless |
| Full Load Amps |
12.5/6.2 A |
| Enclosure Designation |
TEFC (Totally Enclosed Fan Cooled) |
| Weight |
118.0 lbs |
What our Experts Think
-
Built for Hazardous Environments
-
Explosion-proof design for use in Class I, Group D and Class II, Group FG hazardous areas
-
Certified for safety with UL and CSA listings, ensuring compliance with industrial safety standards
-
Durable, High-Performance Construction
-
184TC cast iron frame with C-face flange and footless mounting for secure and easy installation
-
Totally Enclosed Fan Cooled (TEFC) enclosure protects against dust, moisture, and harsh conditions
-
Equipped with regreasable shielded bearings for low maintenance
-
Efficient, Reliable Power
-
Delivers 5 HP at 1800 RPM for continuous-duty applications
-
Operates on dual voltage (230/460V) with a service factor of 1.0, suitable for diverse industrial environments
-
Class F insulation provides dependable operation in fluctuating conditions
Q&A
Q: What applications is the U.S. Motors X5P2BCR motor suitable for?
A: This motor is designed for use in hazardous locations, such as chemical processing, oil and gas facilities, and other environments where explosive gases or vapors may be present. It is ideal for safety-critical applications.
Q: What is the motor's service factor?
A: The motor has a service factor of 1.0, meaning it is built for continuous operation at its rated load, without exceeding its temperature limitations.
Q: What are the motor's construction features?
A: The X5P2BCR motor features a C-face flange, footless mounting, and is constructed with durable cast iron end brackets. It also includes regreasable shielded bearings and is UL and CSA certified for explosion-proof applications.
Q: Is this motor suitable for variable frequency drive (VFD) applications?
A: Yes, the X5P2BCR motor is compatible with VFD applications, enabling variable speed control for various industrial processes.
Maintenance Tips
-
Regular Inspection: Conduct routine inspections to detect any signs of wear, corrosion, or damage to the motor housing and components.
-
Verify Explosion-Proof Integrity: Ensure that all seals and enclosures maintain their explosion-proof integrity. Any breach can compromise safety.
-
Monitor Operating Conditions: Operate the motor within the specified voltage range (230/460V) and ensure that the ambient temperature does not exceed the motor's rated limits.
-
Lubrication: Use the recommended lubricants and follow the manufacturer's guidelines for bearing maintenance to prevent overheating and wear.
-
Avoid Unauthorized Repairs: Repairs should only be performed by qualified personnel familiar with explosion-proof equipment. Unauthorized modifications can void certifications and compromise safety.
-
Documentation: Keep detailed records of inspections, maintenance activities, and any incidents to ensure compliance with safety regulations and to facilitate troubleshooting.
