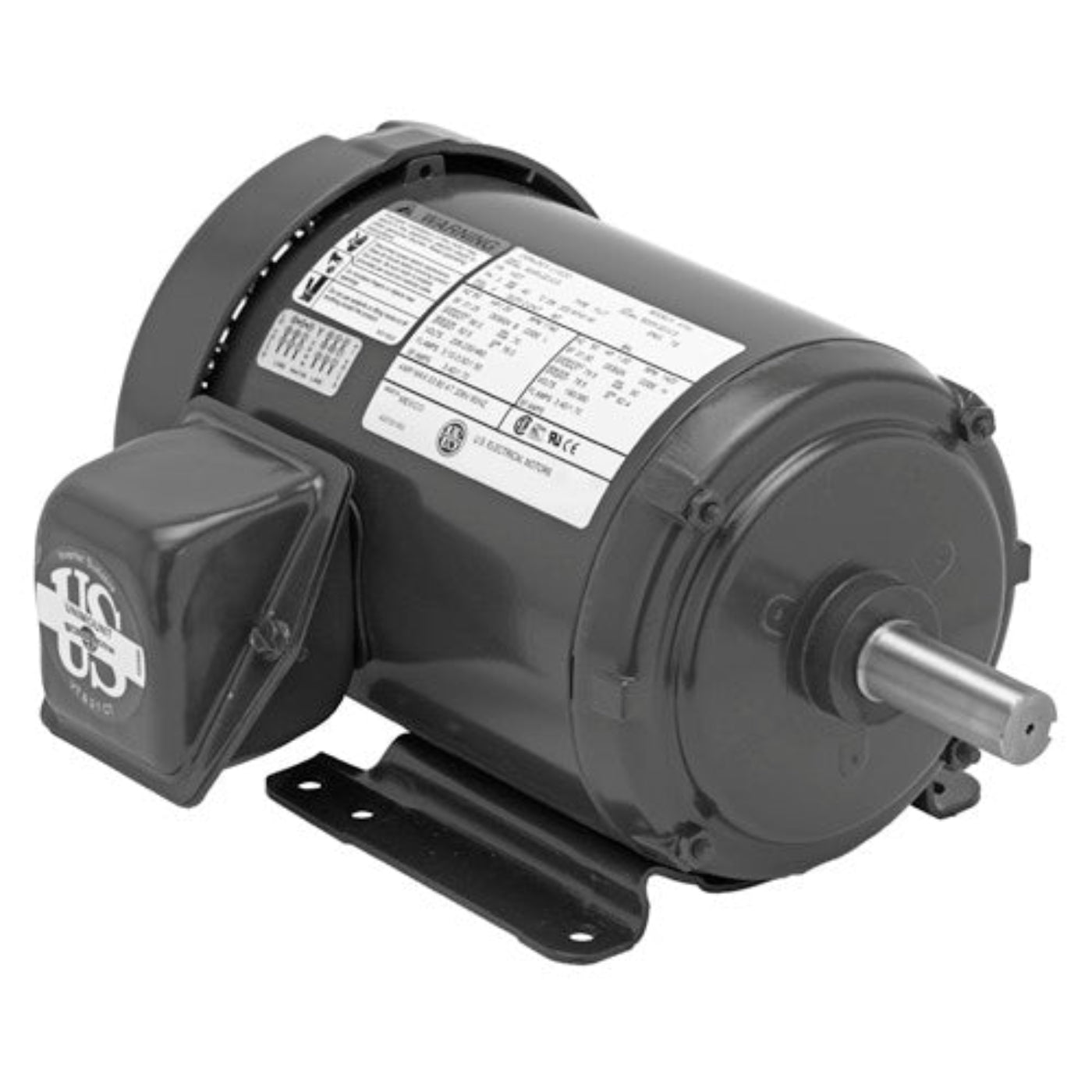

US-Nidec S7P1A General Purpose Motor 7 1/2 HP 3600 RPM 208-230/460 - S7P1A
The US-Nidec S7P1A is a general purpose motor designed for various industrial applications. This motor operates at seven and a half horsepower with a speed of three thousand six hundred RPM. It is designed to function efficiently at voltages of two hundred eight to two hundred thirty or four hundred sixty. This motor is often used in fans, blowers, compressors, pumps, and other direct connected equipment.
Product Highlights
This motor is suitable for heavy-duty tasks in industrial settings. The robust construction ensures reliability and durability. The TEFC enclosure protects the motor from dust and moisture buildup.
Features
- Power: 7.5 HP
- Voltage: 208-230/460
- Frame: 213T
Specifications
| Amperage |
19.9-17.9 / 9 |
| Enclosure |
TEFC (Totally Enclosed Fan Cooled) |
| Phase |
Three |
| Material |
Rolled Steel |
| Bearings Type |
Ball / Ball |
| Bearings Size |
6205-2Z-J/C3 / 6208-2Z-J/C3 |
| Mounting Type |
Horizontal / Footed |
| Rotation |
REV (Reversible) |
| Efficiency |
89.50% |
| Service Factor |
1.15 |
| Brand |
US-Nidec |
| MPN |
S7P1A |
What our Experts Think
-
Powerful & Versatile: With 7.5 HP and a 3600 RPM speed, the S7P1A is a solid workhorse for a wide range of industrial and commercial applications.
-
Dual Voltage Flexibility: Supports 208-230/460V, making it adaptable to multiple power setups—ideal for installations requiring flexibility across different facilities.
-
General Purpose Design: Suited for fans, pumps, compressors, conveyors, and more, this motor fits a broad spectrum of equipment with consistent, high-speed output.
-
Built for Reliability: Designed for durability and longevity, this motor meets the performance demands of continuous-duty environments with minimal maintenance.
-
Backed by US-Nidec: Manufactured by a trusted name known for producing dependable, efficient motors with proven track records across industries.
Q&A
Q: What is the US-Nidec S7P1A motor used for?
A: The S7P1A is a general purpose motor ideal for powering pumps, compressors, fans, conveyors, and other industrial machinery requiring consistent high-speed performance.
Q: What are the main specs of the S7P1A motor?
A: This motor delivers 7.5 HP, runs at 3600 RPM, and operates on 208-230/460V, three-phase power—providing efficient performance across various industrial applications.
Q: What does “general purpose” mean for the S7P1A?
A: It means the motor is designed for versatile, everyday industrial and commercial use, capable of running a wide range of equipment in standard operating environments.
Q: Is the S7P1A suitable for heavy-duty use?
A: Yes, with 7.5 horsepower and a robust design, it is well-suited for demanding applications requiring continuous duty and high torque.
Q: Where is the S7P1A motor best suited?
A: The S7P1A is ideal for use in manufacturing plants, workshops, HVAC systems, and other industrial settings that require a dependable, multi-use motor.
Maintenance Tips
-
Keep It Clean:
Regularly remove dust, debris, and grease buildup from the motor housing, cooling fins, and fan cover to ensure proper heat dissipation.
-
Inspect Electrical Connections:
Tighten and inspect wiring terminals for signs of wear, corrosion, or arcing. Secure power leads to prevent strain or disconnection.
-
Lubricate Bearings as Recommended:
Follow the manufacturer's lubrication intervals. Use compatible grease and avoid over-lubricating, which can cause overheating or seal damage.
-
Check for Vibration or Noise:
Monitor for abnormal sounds or vibrations. These may indicate misalignment, bearing wear, or unbalanced loads.
-
Ensure Proper Ventilation:
Install in well-ventilated areas. Blocked airflow or overheating can degrade insulation and reduce motor life.
-
Inspect Mounting & Alignment:
Verify the motor is securely mounted and properly aligned with connected equipment to avoid shaft and bearing stress.
-
Monitor Operating Temperature:
Use IR thermometers or sensors to check motor temperature periodically. Excessive heat can signal electrical or mechanical problems.
-
Test Voltage & Amperage:
Ensure the motor is receiving the correct voltage (208-230/460V) and operating within its full-load amperage rating.
