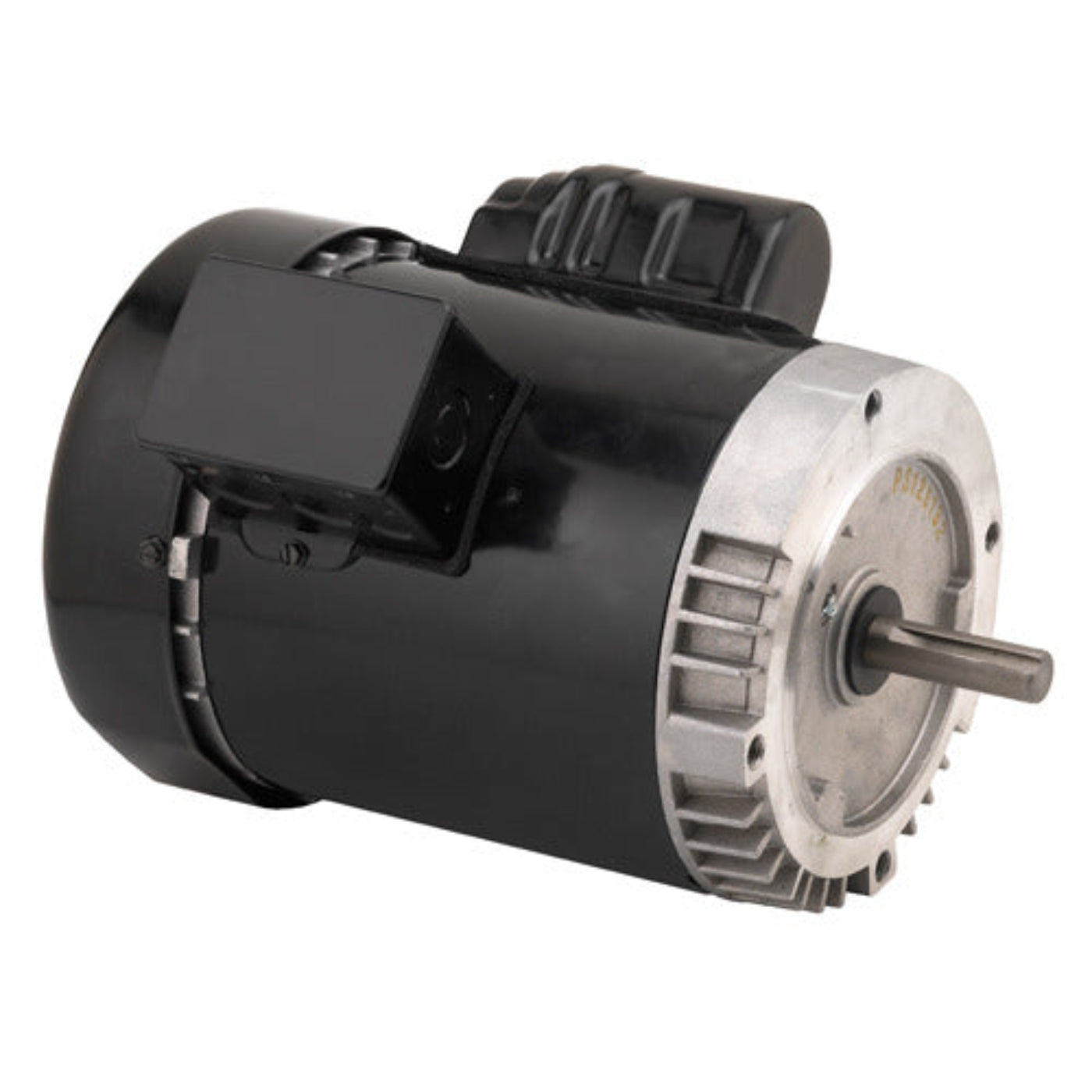

US-Nidec T12CM2JCR General Purpose Motor 1/2 HP (Single Phase) Replacement MPN - T12CM2JCR
The US-Nidec T12CM2JCR is a general purpose motor designed for various applications. This motor operates at one half horsepower and is capable of handling a range of tasks efficiently.
Product Highlights
This motor is built with rolled steel for durability and features manual overload protection for safety. It is designed for single-phase operation and provides reliable performance for various industrial and commercial uses.
Features
- Electrical Type: Capacitor Start
- Voltage: 115/208-230
- Enclosure Type: TEFC
Specifications
| Diameter |
6.5 inches |
| Rotation |
REVERSE |
| Mounting Type |
C-Face / Footless |
| Amperage |
9.0 / 4.3–4.5 A |
| Efficiency |
60.70% |
| Insulation Class |
B |
| Service Factor |
1.15 |
| Bearings Size |
6203 |
| Horsepower (HP) |
1/2 HP |
| Frame |
56 |
| Bearings Type |
Ball / Ball |
What our Experts Think
-
Reliable 1/2 HP Output: Ideal for light to medium-duty industrial applications, offering consistent performance across various setups.
-
Versatile Voltage Range: Operates on 115/208–230V single-phase power, suitable for both residential and commercial environments.
-
C-Face Flange Mounting: Footless design with C-face flange allows for easy, secure integration into existing equipment.
-
Durable TEFC Enclosure: Totally Enclosed Fan Cooled housing protects internal components from dust, moisture, and debris—extending motor life.
-
Reversible Rotation: Can be configured for either direction, increasing compatibility across machinery types.
-
Thermal Protection: Manual reset thermal overload helps prevent overheating and prolongs motor service life.
-
Precision Shaft Design: 5/8" keyed shaft ensures smooth power transfer with minimal vibration.
Q&A
Q: What is the US-Nidec T12CM2JCR motor used for?
A: This motor is designed for general-purpose use in equipment like air compressors, pumps, fans, blowers, and conveyors in commercial and industrial settings.
Q: What are the key specifications of this motor?
A: It provides 1/2 horsepower at 1725 RPM, operates on 115/208-230V single-phase power, and features a 56C frame with a TEFC (Totally Enclosed Fan Cooled) enclosure.
Q: What is the mounting and shaft configuration?
A: The motor uses C-face mounting and includes a keyed shaft that is 5/8" in diameter and 1 7/8" long.
Q: What are the electrical and performance details?
A: It draws 9.0/4.3-4.5 amps, has a service factor of 1.15, and features a capacitor-start design for reliable starts and consistent performance.
Q: What are its construction and protection features?
A: Built with a durable rolled steel frame, the motor includes manual overload protection and double-shielded ball bearings for long-lasting operation.
Q: Why choose the T12CM2JCR?
A: It’s a dependable, versatile motor offering robust performance and protection, making it ideal for a wide range of general-purpose applications.
Maintenance Tips
-
Inspect Regularly: Check for vibration, overheating, or unusual noises before each use.
-
Keep It Clean: Clear dust and debris from vents and motor housing to maintain airflow and cooling.
-
Lubricate Bearings: Apply suitable lubricant to the bearings periodically as per the manufacturer’s schedule.
-
Check Electrical Connections: Ensure all terminals are tight and corrosion-free for safe, consistent operation.
-
Monitor Load & Voltage: Avoid overloading and confirm voltage matches motor specs to prevent damage.
-
Store Properly: If not in use, keep the motor in a dry, ventilated area to avoid moisture-related damage.
