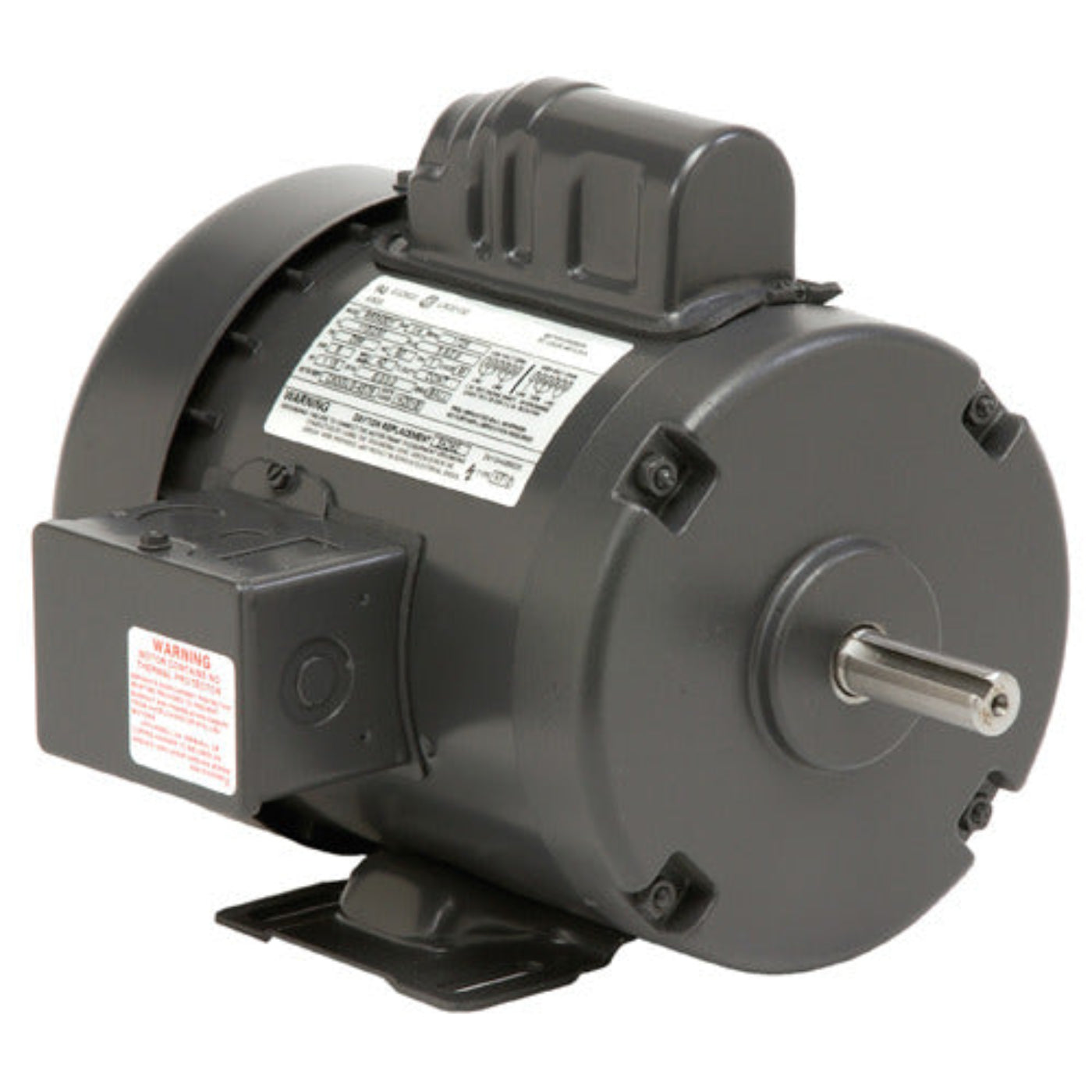

US-Nidec T1C1J General Purpose Motor 1 HP 3600 RPM TEFC - T1C1J
The US-Nidec T1C1J is a reliable general-purpose motor designed for various applications. With a horsepower of one and a rotational speed of three thousand six hundred RPM, it operates efficiently on 115/208-230 volts. The motor has a TEFC enclosure and is constructed from rolled steel, ensuring durability and longevity.
Product Highlights
This motor is engineered for performance and reliability in many industrial applications. It features ball bearings for smooth operation and has a service factor of 1.15, which aids in preventing overheating during extended use.
Features
- Electrical Type: Capacitor Start
- Phase: Single
- Mounting Type: Rigid Base=
Specifications
| Brand |
US-Nidec |
| Model Number (MPN) |
T1C1J |
| Power |
1 HP |
| RPM |
3600 |
| Frame Size |
56 |
| Enclosure Type |
TEFC (Totally Enclosed Fan Cooled) |
| Voltage |
115 / 208–230 V |
| Amperage |
13.6 / 6.9–6.8 A |
| Bearings Type |
Ball |
| Diameter |
6.5 inches |
What our Experts Think
-
1 HP Power Output:
Provides reliable power at 3600 RPM, ideal for a variety of general-purpose applications.
-
Single Phase Operation:
Operates on 115/208-230V, 60 Hz single-phase systems, offering flexibility for different installations.
-
Totally Enclosed Fan Cooled (TEFC) Enclosure:
Protects the motor from dust, dirt, and moisture, making it suitable for environments requiring durable and efficient operation.
-
Capacitor Start Design:
Offers high starting torque, perfect for applications that need a strong startup.
-
Rigid Base Mounting:
Ensures stable and secure installation, minimizing vibration and ensuring optimal motor performance.
-
NEMA 56 Frame:
Compatible with a wide range of equipment due to its standard frame size.
-
Service Factor of 1.15:
Handles occasional overloads, contributing to the motor’s longevity and reliability.
-
Class B Insulation:
Allows for higher operational temperatures, improving overall motor lifespan.
-
Reversible Rotation:
Offers installation flexibility, supporting both clockwise and counterclockwise rotation.
-
Ball Bearings:
Ensures smooth, efficient, and long-lasting operation with minimal maintenance.
Q&A
Q: What applications is the T1C1J motor suitable for?
A: The motor is ideal for general-purpose machinery like pumps, fans, compressors, and conveyors, providing efficient power in a variety of industrial settings.
Q: What are the benefits of the TEFC design?
A: The TEFC design ensures the motor is protected from dirt, dust, and moisture, making it durable and reliable for demanding environments.
Q: Is the T1C1J motor reversible?
A: Yes, the motor is reversible, providing flexibility for different installations and applications.
Q: What is the duty rating of the T1C1J motor?
A: The motor is rated for continuous duty, ensuring reliable performance over long periods.
Q: Does the motor include thermal protection?
A: No, the T1C1J motor does not come with built-in thermal overload protection. External protection is recommended for safe operation.
Q: What is the US-Nidec T1C1J motor?
A: The US-Nidec T1C1J is a 1 HP general-purpose motor with a Totally Enclosed Fan Cooled (TEFC) design, offering reliable performance for a wide range of industrial applications.
Maintenance Tips
-
Keep It Clean: Regularly clean the motor to prevent dust buildup, especially on the cooling fins.
-
Check Electrical Connections: Ensure all connections are secure and free of corrosion.
-
Monitor Bearings: Regularly check the ball bearings for wear and ensure proper lubrication.
-
Check Rotation: Verify that the motor is rotating in the correct direction as needed for your application.
-
Inspect the Enclosure: Make sure the TEFC enclosure remains intact to prevent contaminants from entering the motor.
