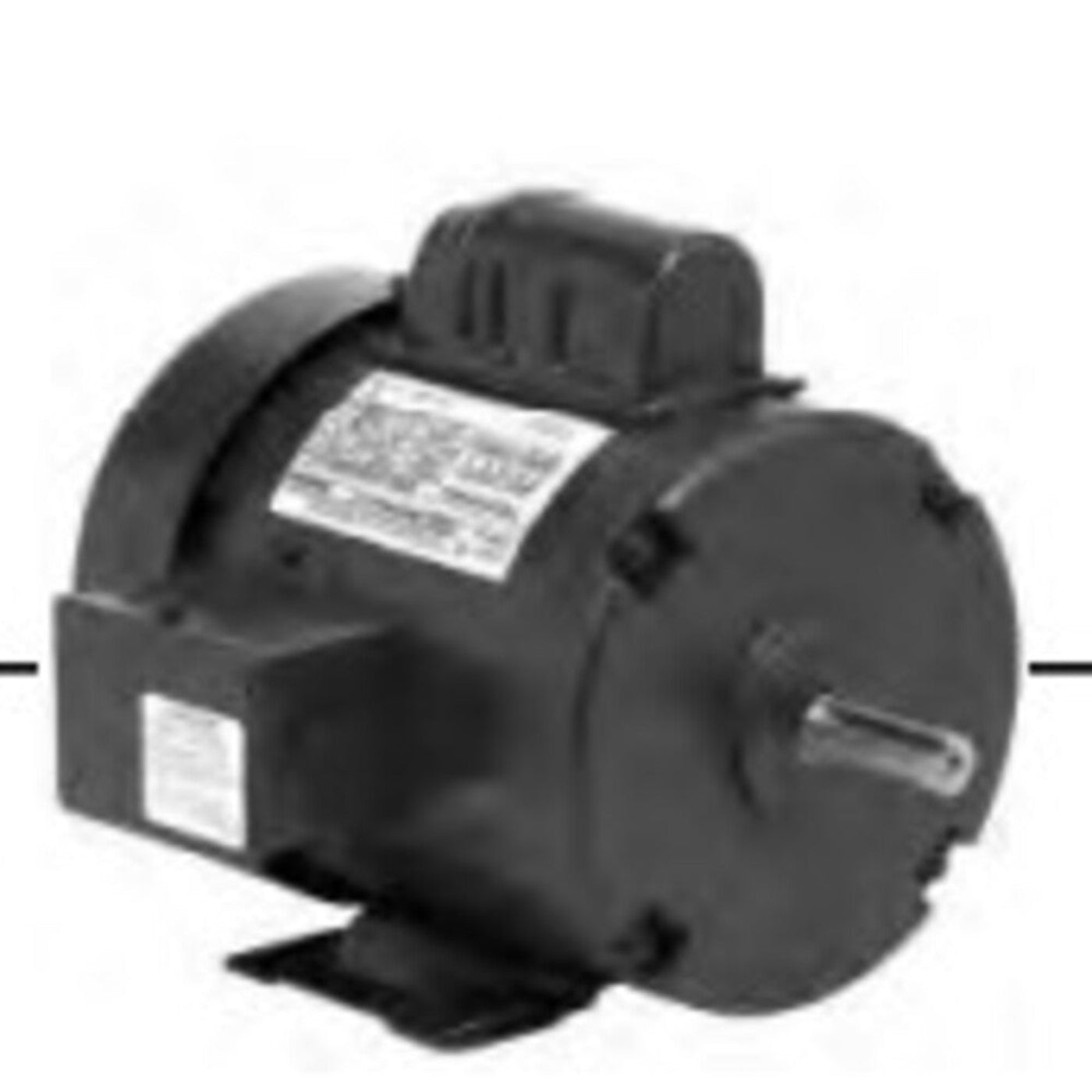

US-Nidec T32C2JH General Purpose Motor 1 1/2 HP 56H - T32C2JH
The US-Nidec T32C2JH is a general purpose motor designed for various applications. This motor is rated at one and one-half horsepower and features a TEFC enclosure, ensuring durability and performance in diverse environments. The motor operates on a voltage range of 115 to 230 volts and can rotate in reverse direction.
Product Highlights
This motor is built with rolled steel and has a Rigid Base mounting type. It employs ball bearings for smooth operation and has an efficiency rating of eighty percent. Its single-phase design makes it suitable for applications needing reliable and consistent performance.
Features
- Electrical Type: Cap Start
- Frame Size: 56H
- Diameter: 6.5 inches
Specifications
| Motor Type |
General Purpose |
| Overload Protection |
None |
| Bearings Type |
Ball / Ball |
| Bearings Size |
6203 / 6203 |
| Amperage |
14.4 / 8.0 - 7.2 A |
| Service Factor |
1.15 |
| Insulation Class |
B |
| Rotation |
REV (Reversible) |
| Brand |
US-Nidec |
| MPN |
T32C2JH |
What our Experts Think
-
1.5 HP Output:
Delivers reliable power at 1725–1800 RPM, suitable for a variety of general-purpose applications such as pumps, compressors, and conveyors.
-
Single Phase Operation:
Compatible with 115/208-230V, 60 Hz single-phase power systems, offering flexibility for different setups.
-
Totally Enclosed Fan Cooled (TEFC) Enclosure:
Provides protection against dust and moisture, ensuring durability in various environments.
-
Rigid Base Mounting:
Designed for easy and secure installation, facilitating stable operation.
-
NEMA 56H Frame:
Standard frame size for compatibility with a wide range of equipment.
-
Capacitor Start Motor:
Offers high starting torque, making it ideal for applications that require a strong startup force.
-
Reversible Rotation:
Provides flexibility in installation and operation.
-
Service Factor of 1.15:
Allows the motor to handle occasional overloads, enhancing its resilience.
-
Manual Thermal Overload Protection:
Protects the motor from overheating, contributing to its longevity.
-
Ball Bearings:
Ensures smooth and reliable performance over time.
Q&A
Q: What are common applications for the T32C2JH motor?
A: Ideal for air compressors, pumps, blowers, fans, conveyors, and other industrial equipment requiring high starting torque.
Q: Is the T32C2JH motor reversible?
A: Yes, it offers both clockwise and counter-clockwise rotation for flexible installation.
Q: Does this motor include overload protection?
A: No, the T32C2JH does not include built-in thermal overload protection. External protection is recommended.
Q: What kind of bearings does this motor use?
A: It features double-shielded ball bearings (6203/6203) for smooth and long-lasting operation.
Q: What is the motor’s duty rating and temperature tolerance?
A: Rated for continuous duty and designed to operate in ambient temperatures up to 40°C.
Maintenance Tips
-
Regular Cleaning: Keep the motor's exterior free from dust and debris to ensure proper ventilation.
-
Electrical Inspections: Periodically check all electrical connections for signs of wear or corrosion.
-
Lubrication: Ensure bearings are properly lubricated according to the manufacturer's guidelines.
-
Thermal Protection Check: Verify that the manual reset thermal protection is functioning correctly to prevent overheating.
-
Storage: If the motor is not in use for extended periods, store it in a dry, clean environment to prevent rust and corrosion.
