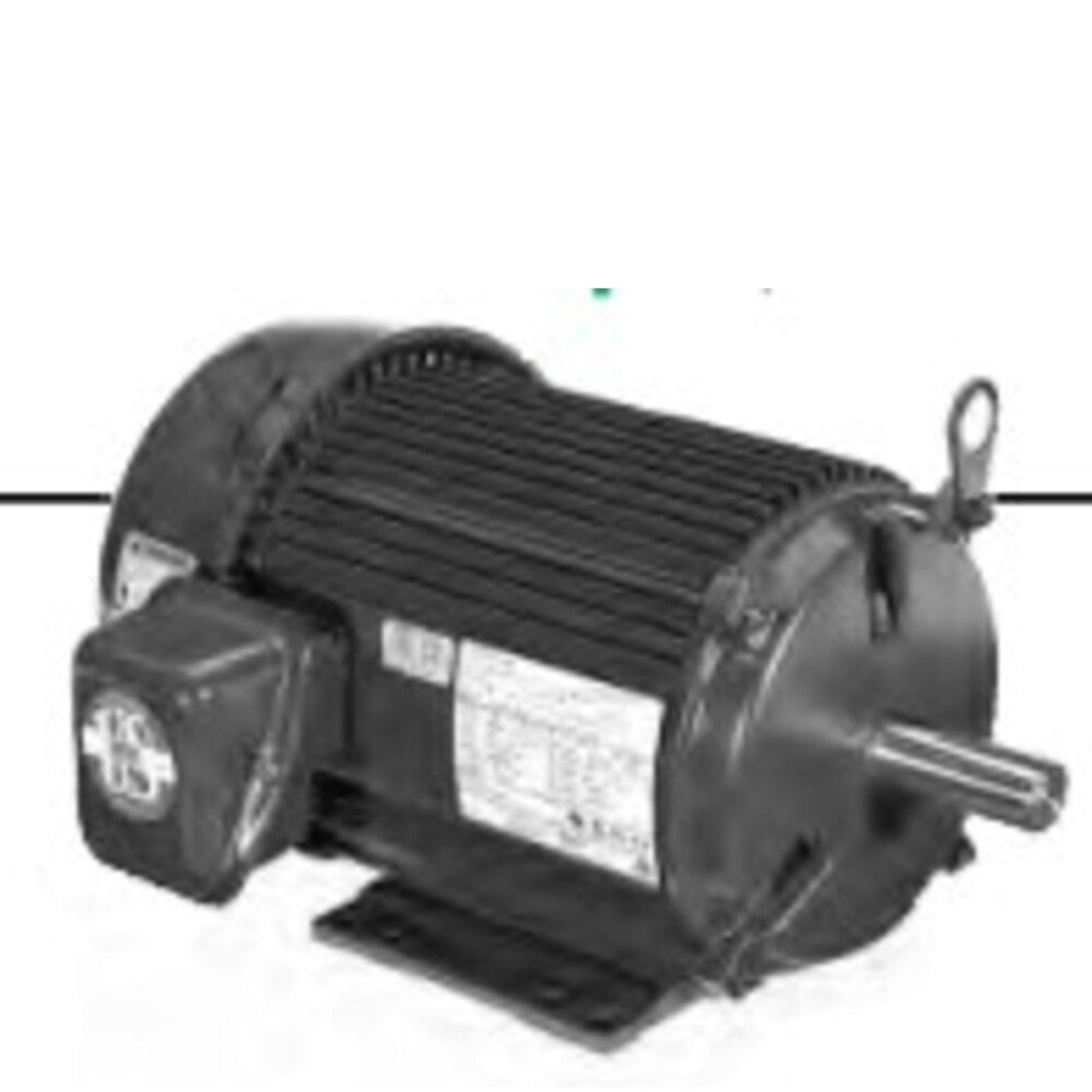

US-Nidec U7V2B Inverter Duty Motor 7 1/2 HP 213T TEAO - U7V2B
The US-Nidec U7V2B is an inverter duty motor designed for efficient operation in various industrial applications. This motor features a three-phase design and offers a power rating of seven and one-half horsepower. The frame size is 213T and comes with a totally enclosed air over (TEAO) protection. It operates at both two hundred thirty and four hundred sixty volts and is rated for reversible rotation.
Product Highlights
This motor performs well in challenging conditions, providing reliability and durability.
Features
- Three-phase electrical type
- Rated for seven and one-half horsepower
- Rigid base mounting for reliable installation
Specifications
| Electrical Type |
Three Phase |
| Power Rating |
7 1/2 HP |
| Voltage |
230/460V |
| Frame Size |
213T |
| Enclosure Type |
TEAO (Totally Enclosed Air Over) |
| Rotation |
REV (Reversible) |
| Material |
Aluminum |
| Bearings Type |
Ball / Ball |
| Mounting Type |
Rigid Base |
| Shaft Type |
Single |
| Efficiency |
91.00% |
| Service Factor |
1.25 |
| Insulation Class |
F |
What our Experts Think
-
Inverter Duty Design: Specifically engineered for variable speed applications, the U7V2B motor is ideal for systems with inverters or VFDs (Variable Frequency Drives), ensuring smooth, reliable performance under fluctuating speeds.
-
Powerful Performance: With a 7.5 HP rating, it provides sufficient power for demanding applications such as conveyors, pumps, and fans.
-
TEAO (Totally Enclosed Air Over): The TEAO design ensures that the motor is protected from environmental elements like dust and moisture, enhancing its reliability in industrial settings.
-
Energy Efficiency: Built to handle varying speeds while maintaining high efficiency, reducing energy consumption over extended periods of operation.
-
Durable & Reliable: Designed for long-lasting operation, this motor is engineered to withstand the rigors of continuous duty, ensuring minimal downtime.
-
Versatile Use: Ideal for industrial applications that require a durable, flexible motor capable of performing under variable conditions.
Q&A
Q: What is the US-Nidec U7V2B motor used for?
A: The U7V2B is an inverter-duty motor designed for use with variable frequency drives (VFDs), making it suitable for applications that require adjustable speed and controlled operation, such as pumps, fans, and conveyors.
Q: What is the power rating and voltage for the U7V2B motor?
A: The U7V2B provides 7.5 HP and is typically used with a 208-230/460V, three-phase power supply, making it ideal for medium-duty industrial applications.
Q: What type of motor is the U7V2B?
A: It is a Totally Enclosed Air Over (TEAO) motor, providing durability and protection against dust and moisture in industrial environments, while still being suitable for cooling by ambient air.
Q: What are the key features of the U7V2B motor?
A: Designed for inverter-duty, the U7V2B is optimized for use with variable frequency drives (VFDs) and provides energy-efficient, variable-speed operation in a variety of industrial applications.
Q: Where is the U7V2B motor best suited?
A: Best suited for industrial applications where variable speed control is required, such as HVAC systems, water treatment plants, and other systems using VFDs to optimize performance and efficiency.
Maintenance Tips
-
Regular Cleaning:
Clean the motor regularly to prevent dust, dirt, and debris buildup, especially around ventilation openings. This ensures proper airflow and reduces the risk of overheating.
-
Check Electrical Connections:
Inspect all electrical connections for tightness, cleanliness, and corrosion. Loose or damaged connections can lead to poor performance, overheating, or failure.
-
Verify Input Voltage:
Ensure the motor is receiving the correct voltage as specified (typically for inverter duty motors). Incorrect voltage can cause the motor to operate inefficiently, overheat, or fail prematurely.
-
Monitor Temperature:
Check the motor’s operating temperature. Overheating can indicate issues like overloading, improper ventilation, or a malfunctioning inverter. Maintain proper ventilation to avoid temperature buildup.
-
Inspect for Vibration:
Excessive vibration can indicate mechanical misalignment or issues with the motor shaft or bearings. Ensure that the motor is properly aligned and securely mounted to reduce vibrations.
-
Listen for Unusual Noises:
Pay attention to any abnormal sounds, such as grinding or high-pitched whines. These could indicate issues with the bearings, motor components, or a potential misalignment.
-
Lubricate Bearings (if applicable):
If the motor uses bearings that require lubrication, ensure they are properly lubricated according to the manufacturer’s recommendations. This reduces wear and prevents friction-related damage.
-
Check for Moisture or Oil Leaks:
Inspect for any signs of moisture or oil leakage around the motor housing and seals. Leaks can lead to contamination and potential failure of the motor or its components.
-
Ensure Proper Mounting and Alignment:
Verify that the motor is securely mounted and properly aligned with the driven equipment. Misalignment can result in excessive wear and reduced motor life.
-
Routine Professional Inspections:
Schedule regular inspections by a qualified technician, especially for inverter duty motors. A technician can assess the motor’s performance, detect issues early, and optimize its lifespan.
