Auxbeam V-ULTRA Series 6/8 Pcs 5 Inch 172W LED Side Shooter Amber DRL with Power Harness - GP00011308
▶5 Inch LED Driving Lights
Features:
Side Shooter Design: Designed with dual side lights to work together with front spot light. Light coverage to clear darkness and potential hazard, increasing your driving safety.
Amber DRL Light Feature: Our DRL design is truly one-of-a-kind. We've added an amber DRL light function that works in tandem with our ultra-bright amber light. Not only alerts other drivers in foggy or rainy conditions, but also complements other weak headlights on your vehicle. This feature also adds a touch of fashion style and elevates its overall appearance.

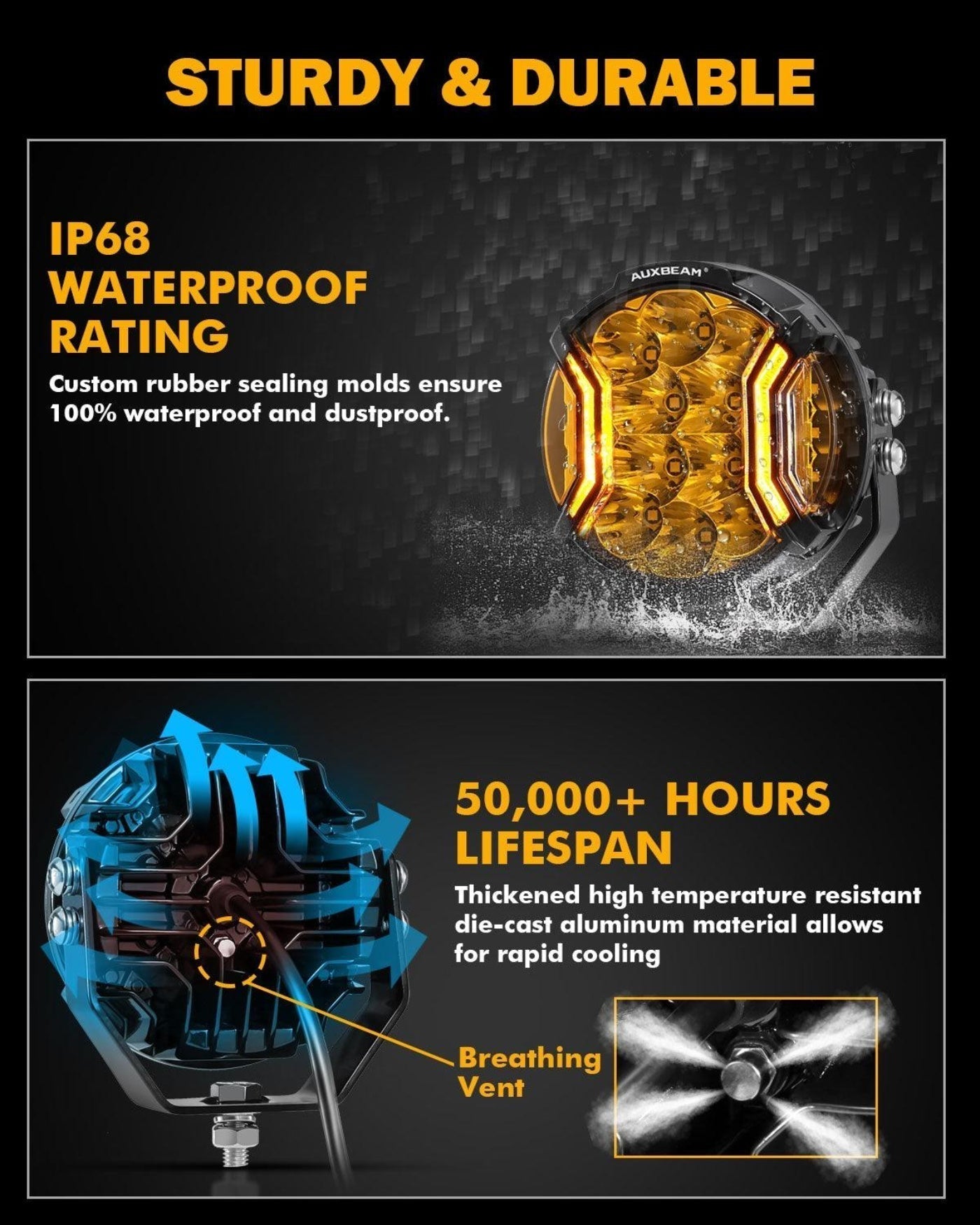

IP68 Waterproof Design: Our newest LED work light has IP68 waterproof rate, protective housing, and sturdy brackets. This ensures that rain, fog, moisture, or dust won't penetrate the bar and cause damage. With exceptional waterproof, dustproof, and shockproof performance, you can trust that our led driving light will withstand even the toughest conditions.

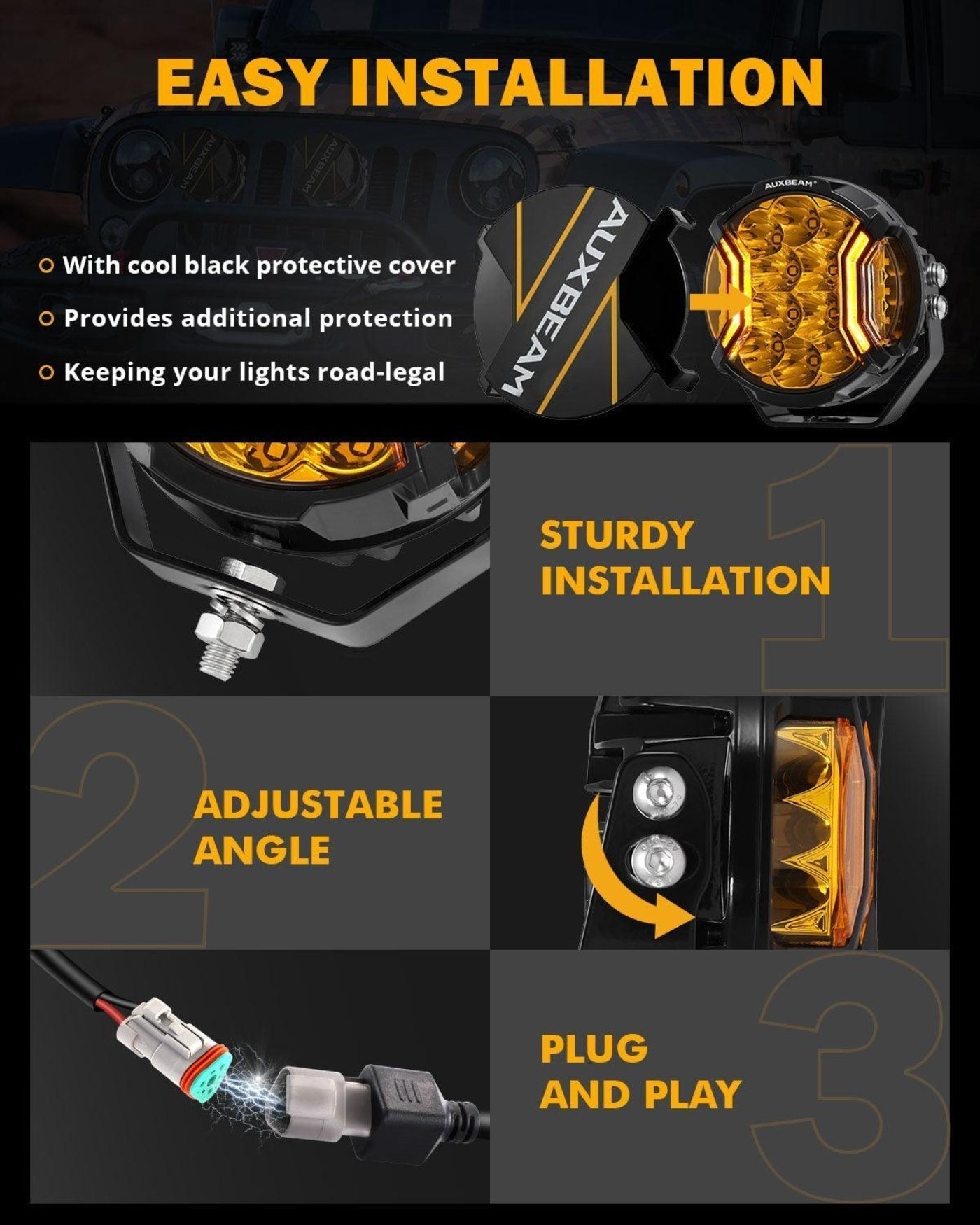

Easy to Installation: We understand that the installation process can be a hassle, which is why we've made it easy for you. Our LED lights come with installation instructions and a plug-and-play wiring harness kit, allowing you to replace your old dim filament lamps in just a few minutes. Say goodbye to the tedious installation process and hello to hassle-free lighting.

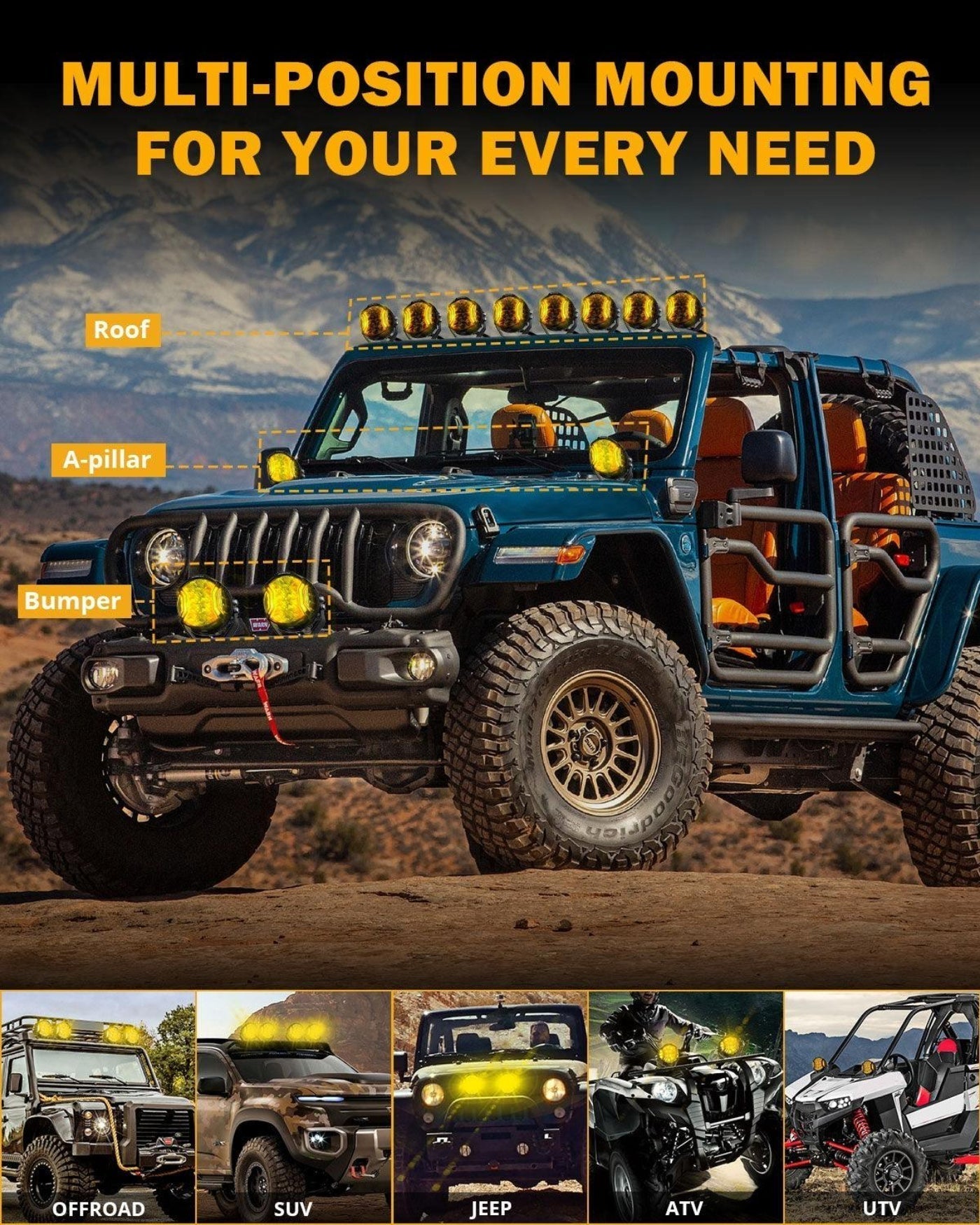

Wide Application: Our LED pod lights are incredibly versatile and can be mounted on a variety of surfaces, including the roof rack, bull bar, headache rack, and running bar. They're suitable for use with almost all off-road vehicles, motorcycles, ATVs, UTVs, SUVs, construction vehicles, trucks, buses, pick-ups, marine vessels, boats, and more. With an operating voltage of 9-24V, our LED pod lights are a reliable and efficient lighting solution for all your needs.
Specification:

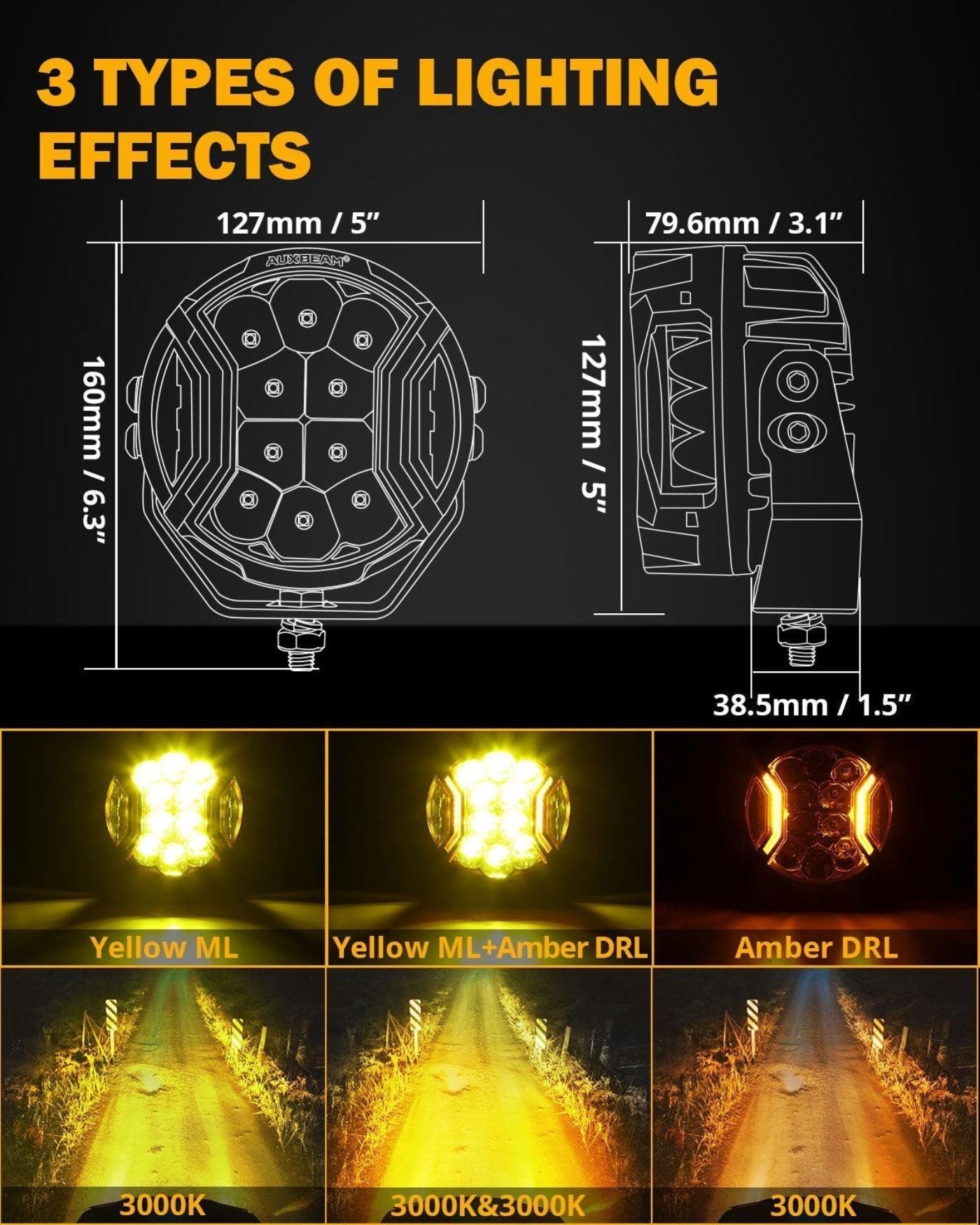

Size: 5 Inch
Quantity: 2Pcs
Power/Set: 86W*2 (Spotlights 80W+Amber DRL 6W)=172W
Total Lumens: 20400LM (19200LM+Amber DRL 1200LM)
Housing Material: Aluminum Alloy
Lens Material: PC
Lamp Beads Model(Each): P8 5W/PCS*16+2835 SMD 6W

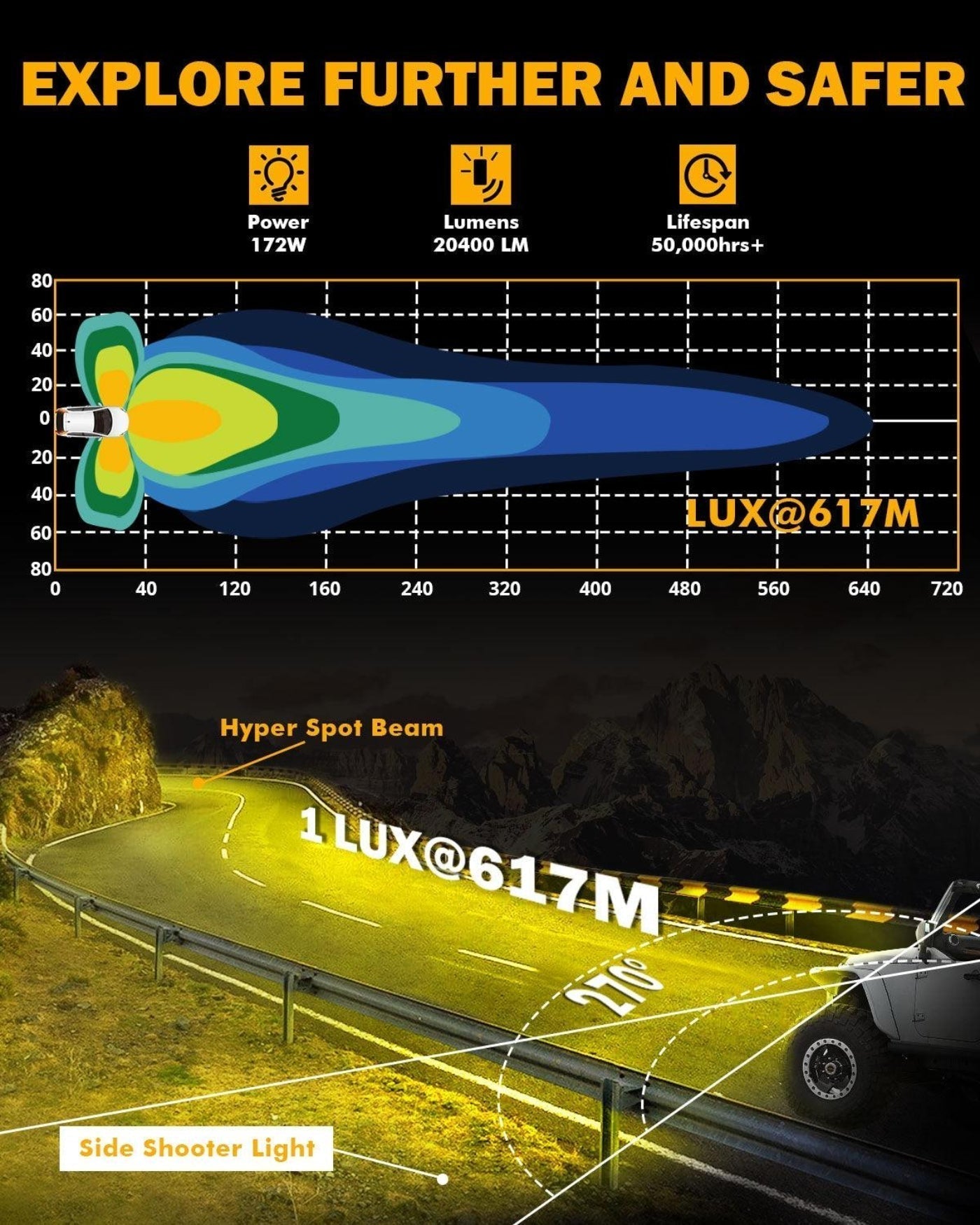

Lighting Distance: 1 LUX@617M
Beam Pattern: (Spot+Flood)Combo Light+Double-Side Shooter Light
Light Color: Amber
Color Temperature: 3000K
Light Cover: Black

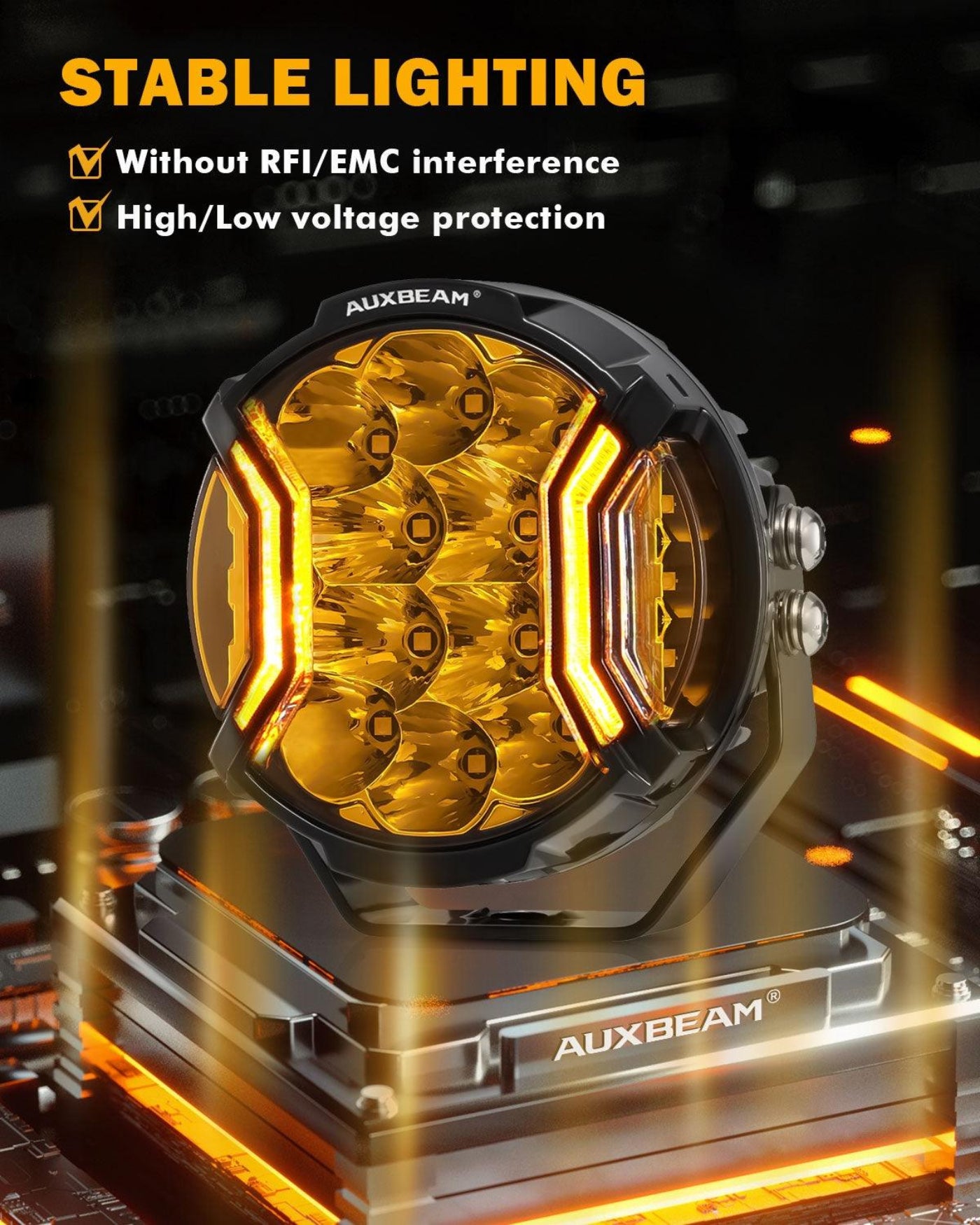

With EMC/EMI: Yes
Fit Model: Universal
Life Time: 50000+ hours
Housing Color: Black
Waterproof Rate: IP68
Working Voltage: 12V-24V(Wiring harness Relay is 12V Only，can be replaced with 24V)

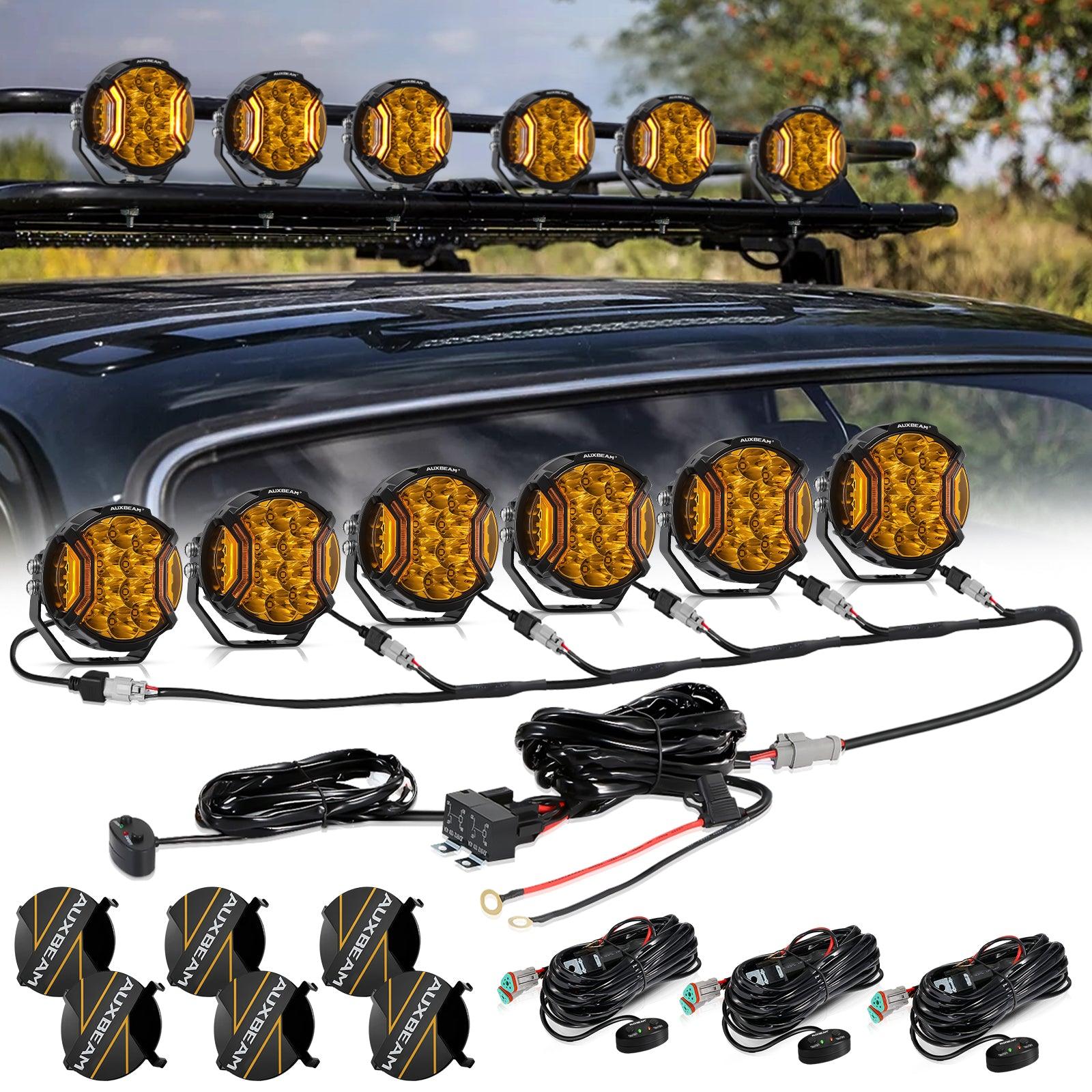

Packing Included
2 X LED Driving Lights（With DT Plug）
2 X Light Cover（Black）
1 X Wiring Harness（With DT Plug）
1 X Srew Accessories
▶6-LED Pod Light Power Wiring Harness Kit
Recommend Fit for Our Pod Light SKU:
6-Pod Lights (A maximum of six pod lights can be installed):
ZD000753/ZD000765/ZD000764/ZD000752/ZD000762/ZD000763/ZD000820/ZD000821
4-Pod Lights (A maximum of four pod lights can be installed):
ZD000617/ZD000483/ZD000484/ZD000696/ZD000692
Features
Compatible: The wiring harness of the LED Pod Light is suitable for three-wire Main Light+DRL mode, and also includes the 6 in 1 3PIN DT Plug 40A fuse and relay. Built-in blade fuses to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system.
Load Power: The wiring harness is included in a 3-meter 10AWG (5mm²) main wire&18AWG (0.75 mm²) DRL wire and a 3 PIN DT-adapter plug with a total length of 1.5 meters, it can effectively overload the MAX 40A current, that is, the load power is 480W, DRL power Max 6A (2W)in the 12V.
Plug and Play: The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 6-Pod LED harness is easy to install, comes with 3 wires DT Plug and can be used for roof or bumper in your vehicle.
Specification
Connect Number Light: Max 6 Pods
Switch Button: Three Mode（Main Light,DRL and Both)

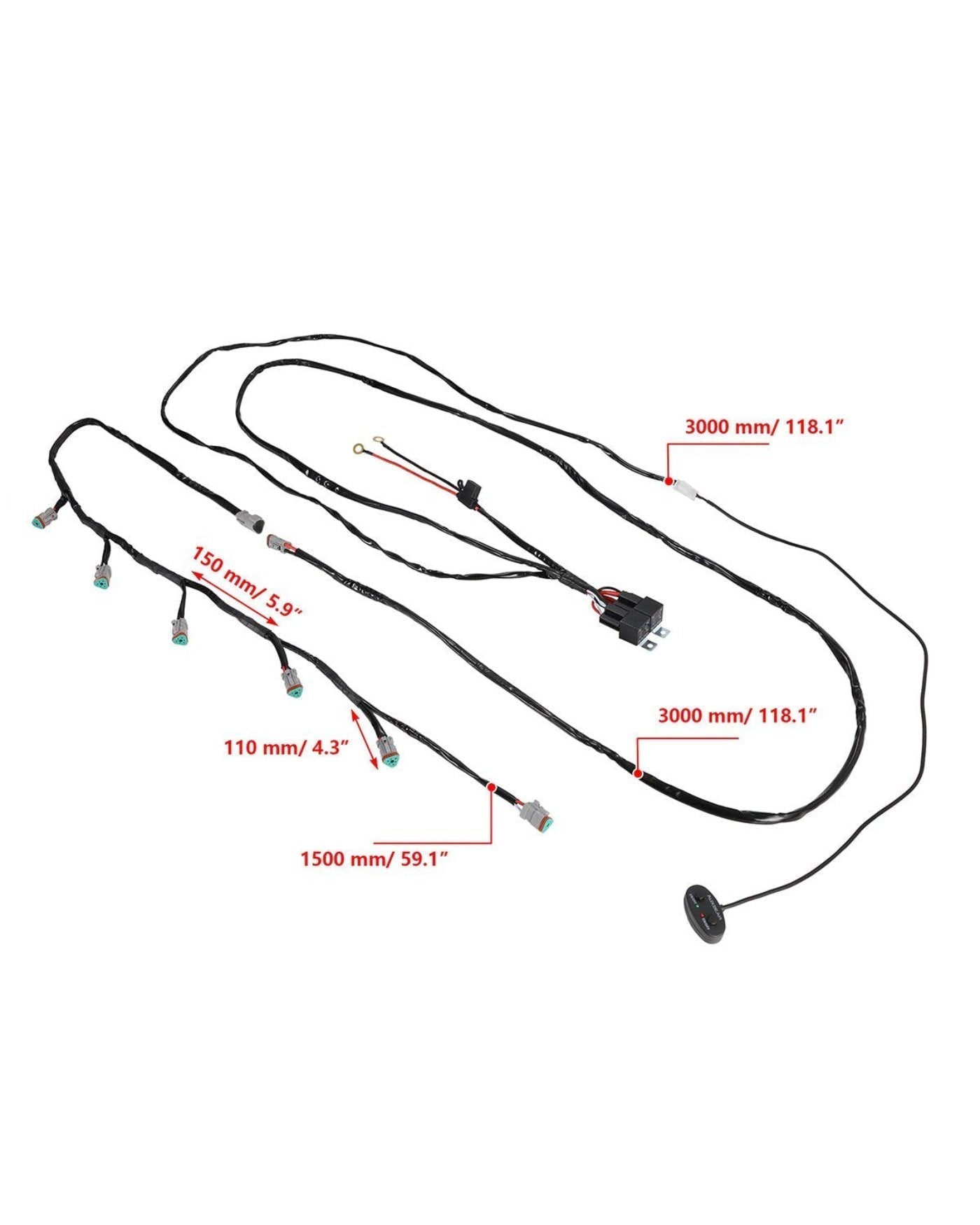

Wire Length: 3M Extension Cord +1.5M Connect Cord
Switch Wire Length: 3M
Install Pod Distance: 15cm
DT-plug Adapter Length: 10cm
DT-plug Connector: 3 PIN
Wire Size: 10AWG national standard（DRL 18AWG）
Wire Material: 5 mm² copper wire (DRL 0.75mm²)
Working Voltage: 12V（Replaceable 24V relay）
Leads Power: Max 480W(current 40A)(DRL 72W&6A)
Fuse Size: 40A
Delay: Double 12V Delay
What Our Experts Think
The Auxbeam V-ULTRA Series 6/8 Pcs 5 Inch 172W LED Side Shooter Amber DRL with Power Harness is designed to boost both visibility and style. Here’s why it’s a great choice:
-
Wide-Angle Side Shooter Pods: These 5-inch side shooter pods offer 172W total power, providing enhanced illumination across a wider area for better side visibility.
-
Amber DRL Lighting: Amber Daytime Running Lights (DRL) not only add a sleek look but also improve safety by making your vehicle more visible to others during the day.
-
High-Performance LEDs: Known for their long lifespan, these LEDs deliver bright, energy-efficient light for reliable, long-lasting performance.
-
Quick and Easy Installation: Comes with a power harness for easy installation, saving you time and effort.
-
Durable and Weather-Resistant: Built for durability, these pods feature waterproof, shockproof construction to withstand rugged conditions.
Q&A
Q: What’s included in the Auxbeam V-ULTRA Series 5-inch LED side shooter kit?
A: The kit includes 6 or 8 pieces of 5-inch 172W LED side shooter lights with amber DRL (Daytime Running Lights) and a power harness for easy installation.
Q: What is the purpose of the LED side shooter lights?
A: The LED side shooter lights provide enhanced peripheral lighting, ideal for off-road adventures, illuminating wide areas to improve visibility and safety during trail navigation.
Q: How bright are the 172W LED side shooter lights?
A: Each 5-inch light delivers 172W of power, providing strong, bright illumination with a wide beam pattern for better coverage in off-road and low-visibility conditions.
Q: What advantages does the amber DRL offer?
A: The amber DRL offers a distinctive, stylish look and enhances vehicle visibility, especially in foggy or rainy conditions, improving safety for day and night driving.
Q: Does the kit include a power harness?
A: Yes, the kit includes a power harness, making the installation process easy with the necessary wiring for connecting the lights to your vehicle.
Q: Are these lights suitable for off-roading?
A: Absolutely! The V-ULTRA Series LED side shooter lights are designed for off-road use, offering rugged durability, waterproofing, and bright, reliable light output for tough conditions.
Q: How many LED side shooter lights are included in the kit?
A: The kit is available with either 6 or 8 LED lights, allowing you to choose based on your specific lighting needs and desired coverage.
Maintenance Tips
-
Regular Cleaning – Use a soft, damp cloth to clean the LED pods and remove dirt, ensuring proper light performance.
-
Moisture Check – Inspect for moisture or condensation inside the pods and reseal if necessary to prevent water damage.
-
Inspect Power Harness – Ensure the power harness is properly connected and free from damage or wear for reliable operation.
-
Tighten Mounting – Check the mounting hardware periodically and tighten any loose components to avoid vibrations or misalignment.
-
Wiring Inspection – Examine all wiring for signs of fraying, corrosion, or loose connections to maintain safety and performance.
-
Alignment Check – Ensure the LED side shooters are positioned properly for optimal amber DRL illumination and visibility.
