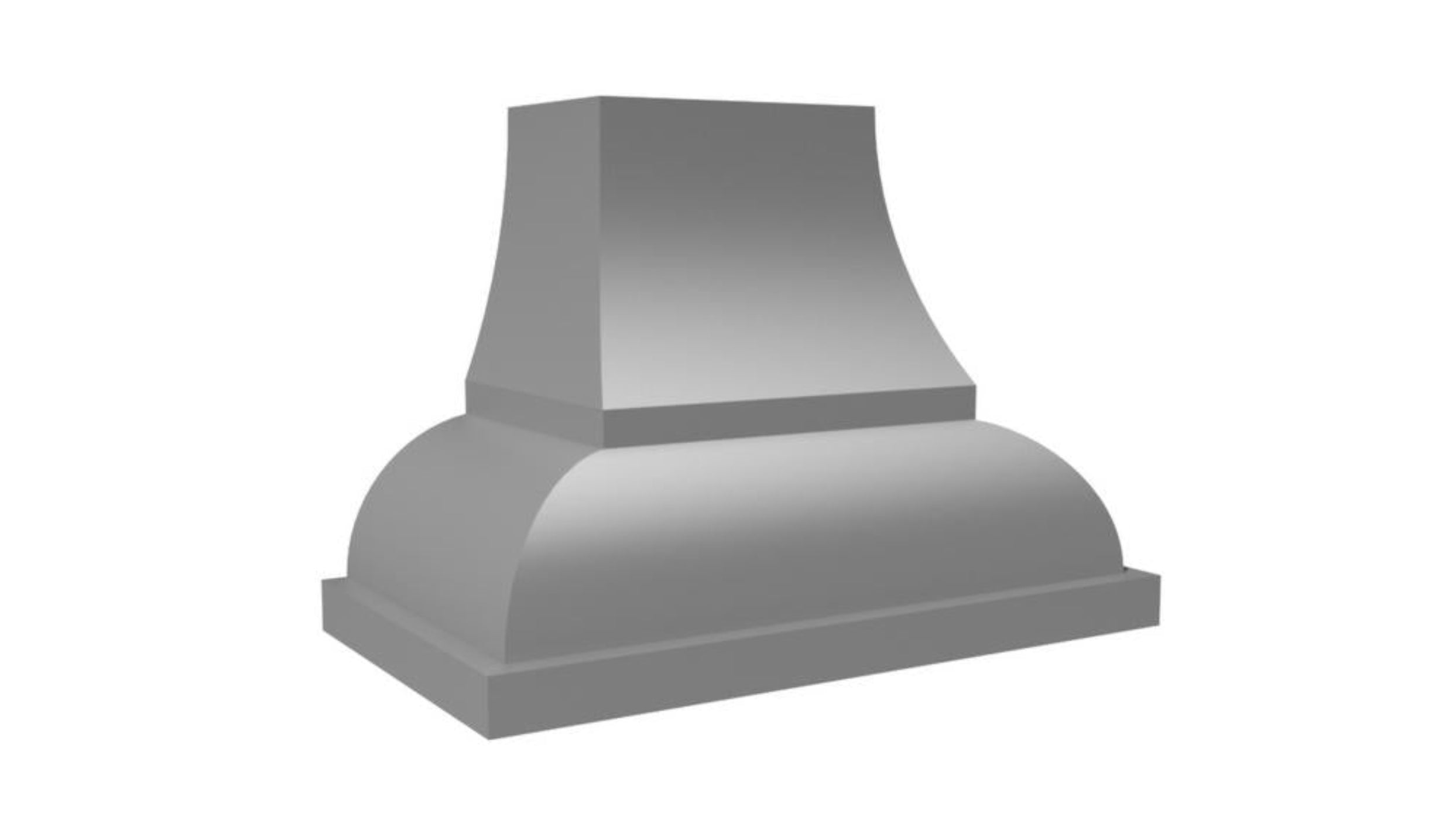

VENTAHOOD 36" Wall Mounted Designer Series Range Hood - JCH236A1
Two part compound curve with offset lip styling. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted, stainless steel, real brass, real copper, or hammered copper]. All Vent-A-Hood Magic Lung products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit. Recommended mounting height is 30" above the cooking surface.
What our Experts Think
-
Balanced 600 CFM Ventilation: Equipped with a dual B200 Magic Lung blower, this 36″ Designer Series wall‑mount hood delivers up to 600 CFM airflow (≈900 equivalent CFM) — ideal for everyday to moderate cooking and effective smoke/grease removal with proper ducting.
-
Designed for Real Kitchens: Sized 36″ wide × 24″ deep to fully cover standard cooktops and improve air capture, helping reduce lingering odors and steam.
-
Premium Aesthetic & Lighting: LED/halogen lighting (2 lights with dimming) enhances cooktop visibility, while the Designer Series styling adds refined visual appeal to modern kitchens.
-
Expert Installation Tip: Pros recommend mounting ~30″ above the cooking surface and using an 8″ duct for optimal airflow efficiency and quieter operation.
-
Reliable Build & Safety: Magic Lung® blower technology ensures consistent performance; recommended for ducted installations with robust airflow and trusted durability.
Q&A
Q2: How strong is the ventilation (CFM)?
A: Delivers 600 CFM airflow with Vent‑A‑Hood’s dual Magic Lung® blower — ideal for everyday to moderately heavy cooking.
Q3: What are the key dimensions and installation guidance?
A: Approx. 36″ W × 24″ D × 12″ H with a recommended mounting height ~30″ above the cooktop for optimal capture.
Q4: What lighting does it include?
A: Includes 2 halogen lights with dual switches (dimming capability) to illuminate the cooktop.
Q5: What duct size is required?
A: Requires an 8″ round duct for proper ventilation performance.
Q6: What noise level should users expect?
A: Noise rating around 6.5 sones at full power — typical for a high‑CFM residential hood without restrictive filters.
Q7: Can this hood be used in damp or outdoor locations?
A: Yes — Vent‑A‑Hood products are suitable for damp locations (like covered patios) when installed on a GFCI‑protected branch circuit.
Q8: What finishes and design options are available?
A: Available in stainless steel, painted, real brass, real copper, or hammered copper finishes to match your kitchen décor.
Q9: Who is this range hood ideal for?
A: Best for home cooks wanting powerful ducted ventilation with a designer wall‑mount aesthetic that complements modern kitchens.
Maintenance Tips
• Clean metal grease filters every 4–6 weeks to maintain strong airflow and efficient smoke removal
• Wipe stainless steel exterior weekly with a soft cloth and mild cleaner, following the grain
• Deep‑clean interior and fan area quarterly to prevent grease buildup and odors
• Avoid abrasive scrubbers or harsh chemicals that can scratch or dull the finish
• Replace lights promptly to ensure optimal cooktop visibility
• Inspect ductwork annually to maintain peak ventilation performance
