Vinotemp Wine-Mate 1500SLIM Self-Contained Slim Wine Cooling System - WM-1500SLIM
WM-1500SLIM cooling units are designed and used to provide a subtle temperature between 50~65°F for a properly insulated wine cabinet. The humidity in the refrigerated space is maintained within 50~75% RH. These temperature and humidity ranges are optimized for long term storage of wine. The self-contained cooling unit features only 8” deep slim profile to fit small and medium wine cabinets. This unit can provide a cabinet depth of less than 18 inches. Innovatively designed cold air curtain keeps even temperatures everywhere in the cabinet. Temperature is controlled and humidity is adjusted using innovative technology. Multiple options for top and rear hot air exhaust are convenient for different installations. The unit is self-contained ready for easy installation and use.
Wine-Mate cooling systems are also perfect for storing fine fur, cigars, leather goods, chocolate and salami! For an additional cost, Wine-Mate systems can be customized for your exact storage needs - please call for more information!
NOTE: Wine-Mate self-contained units must be operated in an upright position at all times. They should not be placed on their side or flipped upside down.
Find the best cooling system for your wine cabinet or wine cellar by calculating the heat load using one of our calculators.

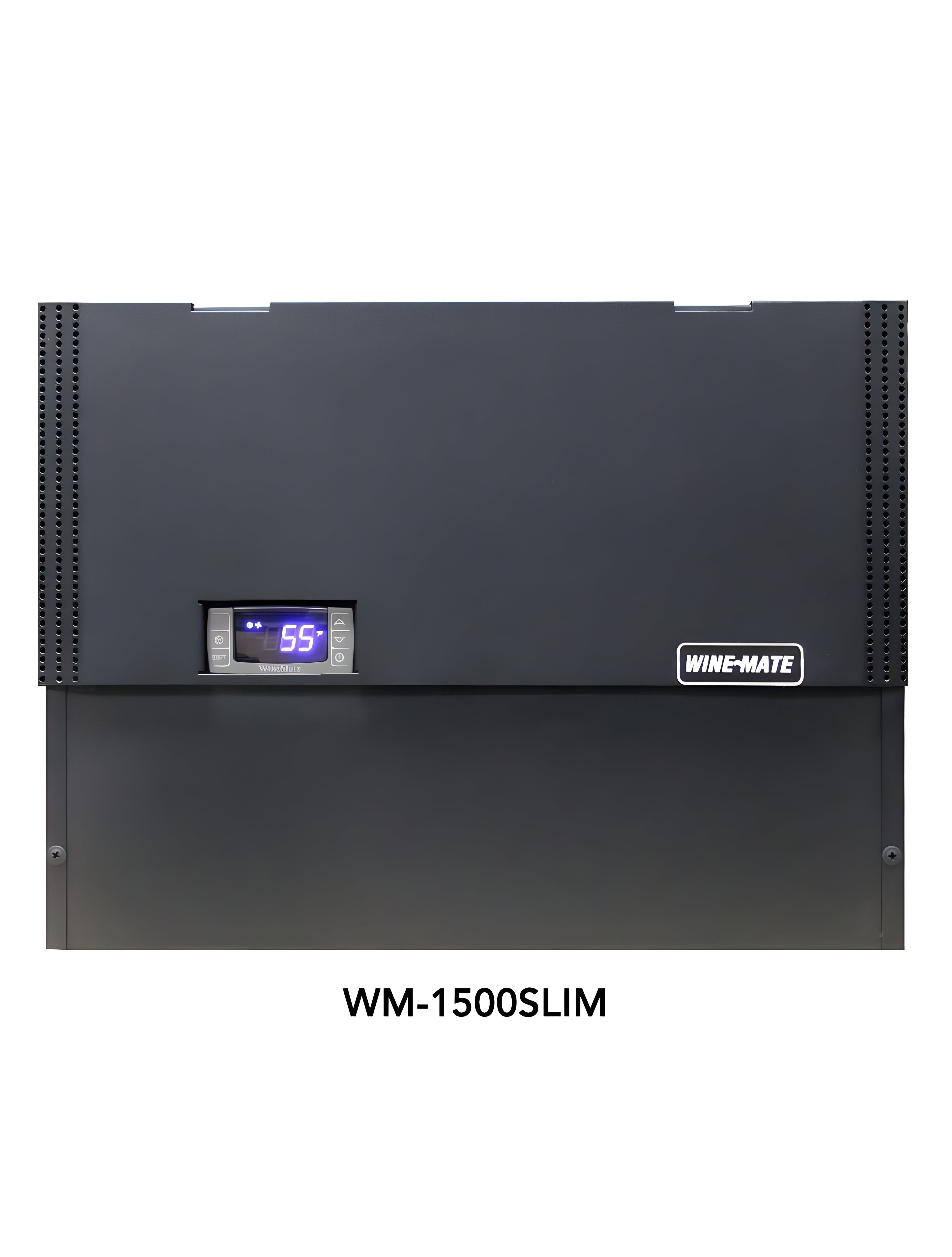

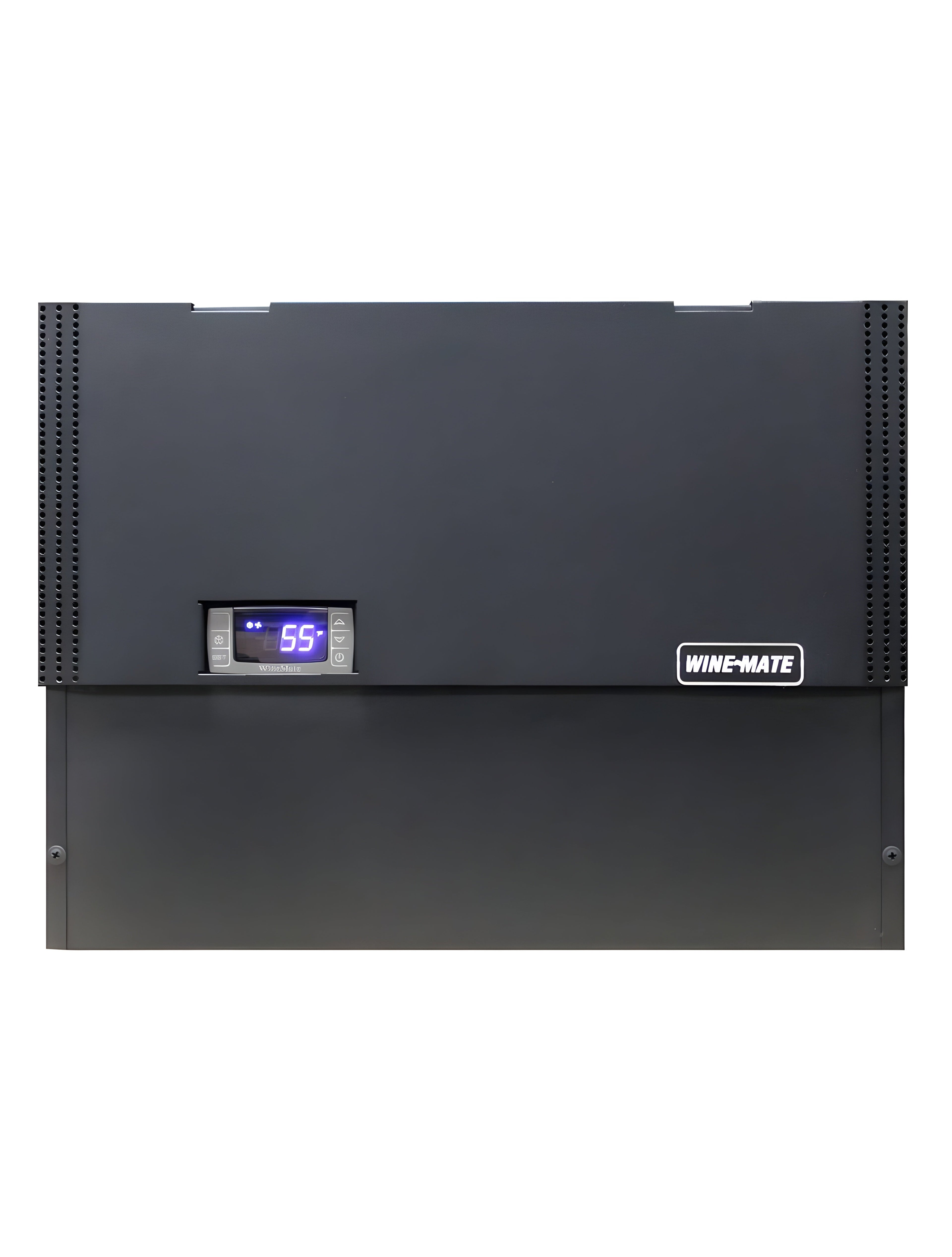

Skinny Profile & Digital Control PanelThis unit is only 8" deep and can fit in tighter spaces, making it ideal for smaller cabinets. It's also simple to change the settings with this easy-to-use digital control panel.

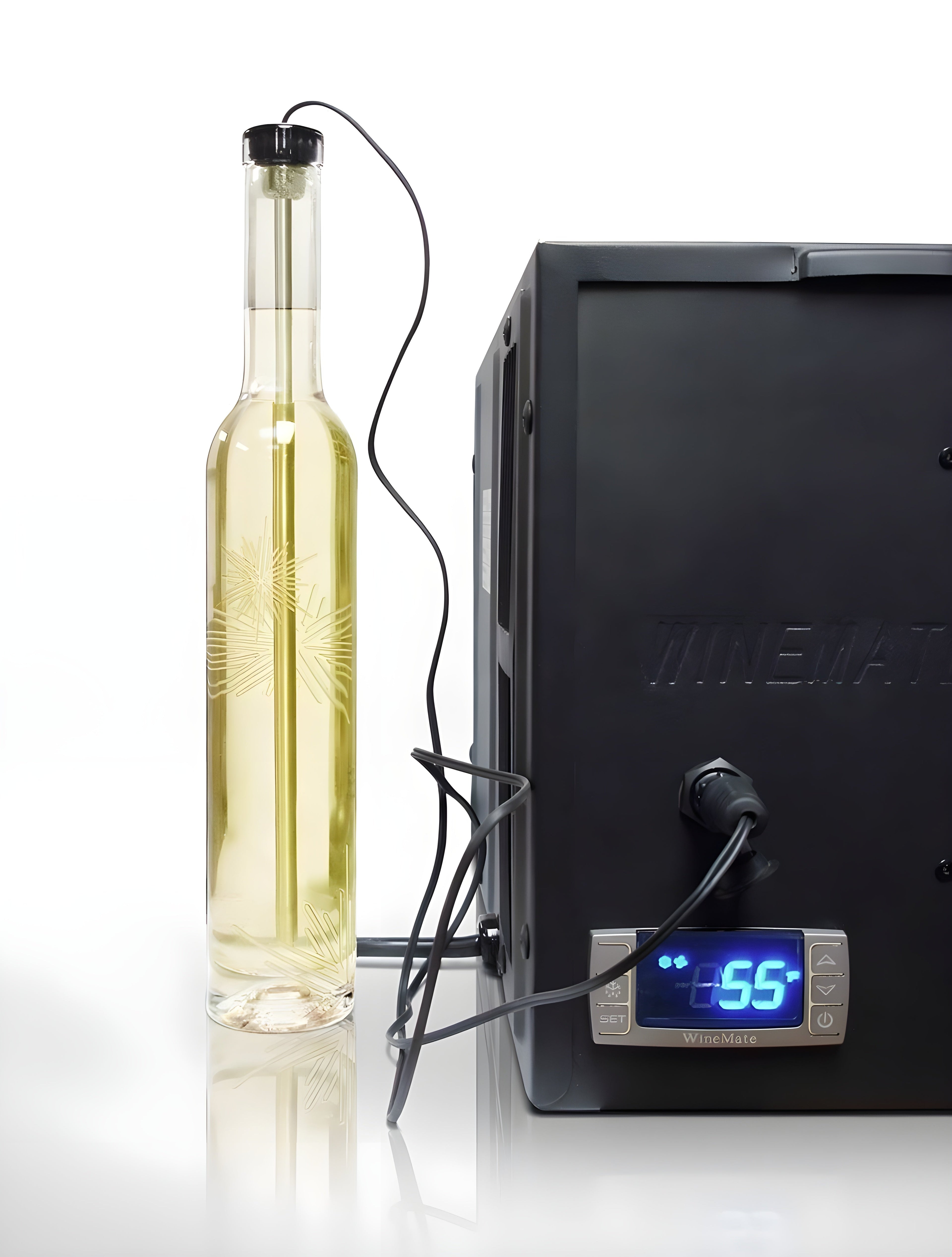

Add The Wine Bottle Probe
The probe provides an accurate reading of the temperature of your wine.
You will have the following advantages of using a bottle probe.
1) Air temperature in the cabinet may fluctuate, but the wine temperature in the bottle is constant.
2) You can put a cooling unit in a full wine cabinet and show both the air temperature and bottle temperature.
Features
- SELF-CONTAINED: This unit is a self-contained, all-in-one, and ready for use. No copper tubing or drain line are required.
- EXHAUST: Rear (standard) or top
- Supply: Cold air supply curtain keeps even temperatures everywhere in the wine cabinet.
- VENTING: When installed into a wine cabinet or cellar, this unit must vent outside.
- TEMPERATURE: The WM-1500SLIM cooling unit is designed and used to provide a stable temperature between 50~65 °F for a properly insulated and sized space.
- AMBIENT TEMPERATURE RANGE: The ambient temperature range for WM-1500SLIM should not be higher than 78°F or lower than 50°F in order to operate properly.
- If the exhaust ambient temperature exceeds 78°F, one size larger unit must be used.
- You can also select low-profile self-contained cooling units that can go 2500 BTU.
- HUMIDITY CONTROL: The refrigerated space will maintain humidity within the range of 50~75% RH. We use an innovative method to provide additional humidity.
- DISPLAY: Digital display with easy push-button controls
- NOTIFICATIONS: Display notifications provide alerts help to protect your wine cellar and alert you when maintenance is required.
- CONTROL PANEL: Control panel includes digital display, manual defrost button, up and down arrows to adjust temperature as well as browse parameters, power button, and SET button.
- Self-Contained Slim Wine Cooling System provides slim installation and maximizes wine storage space.
- Water-repellent self-cleaning and anti-microbial coat helps your equipment stay efficient and actively kills harmful bio-film growth.
- The unit is self-contained ready for easy installation and use.
- The unit features only 8" depth to fit small and medium wine cabinets.
- WM-1500SLIM cooling unit is a ceiling unit, which can be mounted on a ceiling.
- WARRANTY: Self-contained units 1 year warranty on parts, 1 year labor.
Specifications
| Dimensions (W x D x H) |
18” x 8” x 13-1/2” |
| Electrical Rating |
115V / 60Hz / 4A |
| Noise Level |
47 dBA (Cooling Unit), 44 dBA (Cabinet) |
| Airflow (CFM) |
120 |
| Cooling Capacity (BTU/h) |
1500 |
| Weight |
40 lbs |
| Coverage Size |
90 Cubic Feet |
CONFIGURATIONS
- Standard rear exhaust with the option to upgrade to top exhaust.
-
Add the Wine Bottle Probe to receive the most accurate reading of your wine's temperature. The Wine Bottle Probe measures the temperature of the liquid inside the bottle to ensure your wine is kept at the ideal temperature and plugs directly into your cooling system.
-
FOR THE FOLLOWING OPTIONS, call to order: 1-800-777-VINO (8466).
- Mounting brackets are available for an additional fee.
- Add the Energy Saving & Quick Chilling upgrade to a digital temperature control of Wine-Mate cooling system.
1) Energy Saving enables the compressor to run less time in certain circumstances to save energy by increasing the set-point. To activate the Energy Saving mode, turn on the switch.
2) Quick Chilling enables the compressor to run continuously without stopping for a period of preset time for pull-down cooling. To activate Quick Chilling press and hold the UP icon for more than 3 seconds. To end Quick Chilling press and hold the UP icon for more than 3 seconds again.
(Click image to enlarge PDF)
Manuals and Other Resources
Click links to view
What Our Experts Think
-
Compact & Powerful – Slim design efficiently cools wine cellars up to 90 cubic feet.
-
Self-Contained System – No ducting required, making installation simple and hassle-free.
-
Precise Temperature Control – Digital panel allows easy adjustments for optimal wine storage.
-
Consistent Cooling – Maintains stable conditions to preserve wine quality and aging.
-
Quiet & Energy-Efficient – Designed for minimal noise while delivering reliable performance.
-
Durable & Long-Lasting – High-quality construction ensures years of dependable use.
Q&A
Q: What is the Vinotemp Wine-Mate 1500SLIM Self-Contained Slim Wine Cooling System - WM-1500SLIM?
A: It’s a compact, self-contained wine cooling system designed to regulate temperature and humidity in small wine cellars.
Q: What is the cooling capacity of this unit?
A: It can effectively cool wine cellars up to 150 cubic feet.
Q: What makes this unit “slim”?
A: Its space-saving design allows for easier installation in tight or narrow spaces.
Q: Can the temperature be adjusted?
A: Yes, it features precise digital temperature controls for customized settings.
Q: Is professional installation required?
A: No, it is a self-contained system that allows for easy through-the-wall installation without professional refrigeration expertise.
Q: Does it control humidity?
A: Yes, it helps maintain proper humidity levels to protect wine quality and prevent cork drying.
Q: Where should this unit be installed?
A: It is designed for through-the-wall installation and requires proper ventilation to an adjacent space for efficient operation.
Maintenance Tips
-
Ensure Proper Ventilation – Maintain at least 6 inches of clearance around vents for optimal airflow.
-
Clean Air Filters – Wash or replace filters every 3-6 months to maintain efficient operation.
-
Monitor Temperature & Humidity – Regularly check settings to keep wine at the ideal 55°F and 50-70% humidity.
-
Dust Condenser Coils – Clean every 6 months with a soft brush or vacuum to prevent dust buildup.
-
Check Drain Line – Ensure it remains clear to prevent condensation buildup or leaks.
-
Inspect Door Seals (if applicable) – Keep gaskets clean and intact for a tight seal and consistent cooling.
-
Position Away from Heat Sources – Install in a well-ventilated area, avoiding direct sunlight and heat-producing appliances.
-
Listen for Unusual Noises – Any abnormal sounds may indicate the need for maintenance or service.
