Auxbeam AR-800 RGB Switch Panel + 3 Inch LED Pods with White&Yellow Cover - GP00012139
Specification:
▶AR-800 RGB Switch Panel
Working voltage: DC 12-24V
Max current: 60A
Rated voltage: 12V 20A / 24V 10A
Operating at 12 Volts: max power rating of 720W
Operating at 24 Volts: max power rating of 1400W
Switch operation: On-Off
Operating temperature: -40°C - +105°C
Waterproof rating: IP65

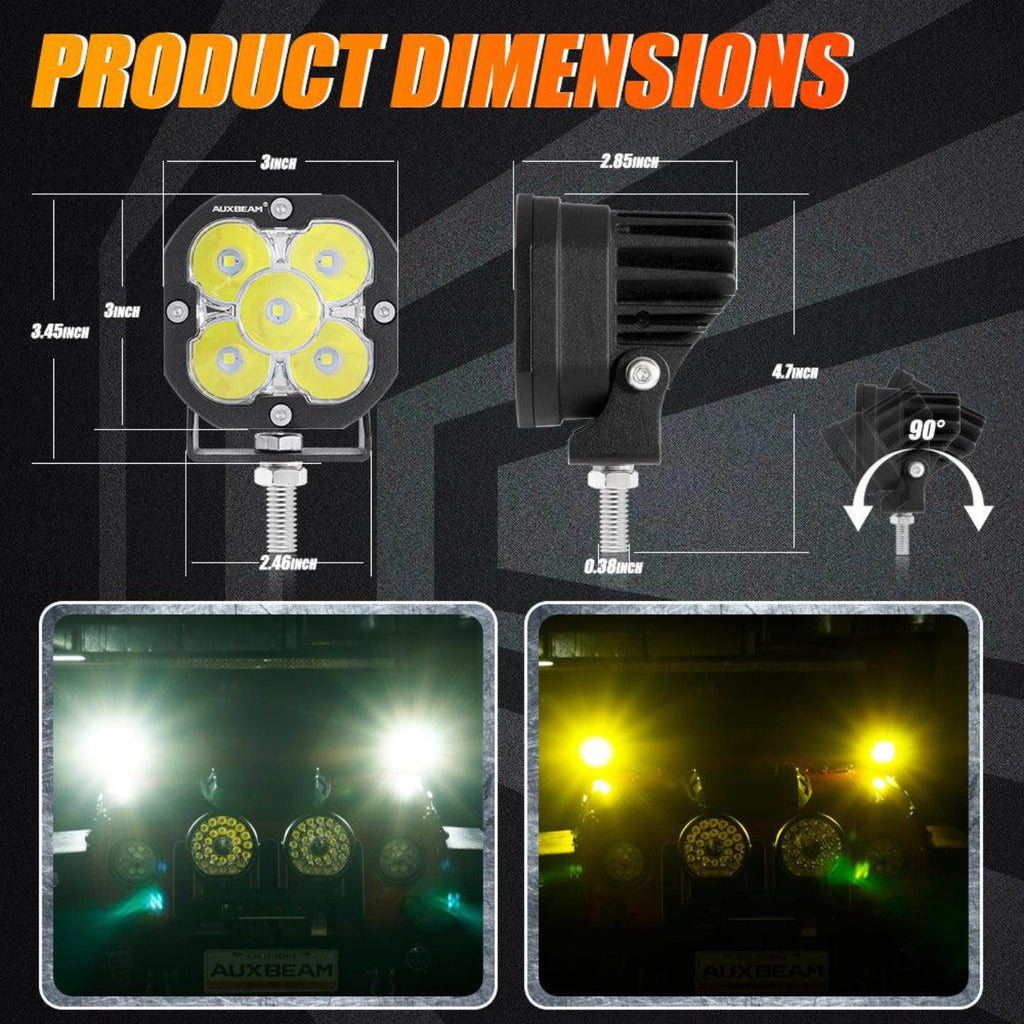

▶3 Inch LED Pods
Input voltage: 12-30V
Power: 80W/SET
Raw Lumen: 9600M/PAIR
Effective Lumen: 8000LM/PAIR
Lighting distance: 1LUX@1699FEET
LED CHIPS: P8*5
LED quantity (each one): 5 Pcs
Color temperature: 6000K-White beam / 3500K-Yellow beam
Waterproof rate: IP68
Light color: White/Yellow
Body color: BLACK
PCS/SET: 2Pcs
Features
▶AR-800 RGB Switch Panel
-

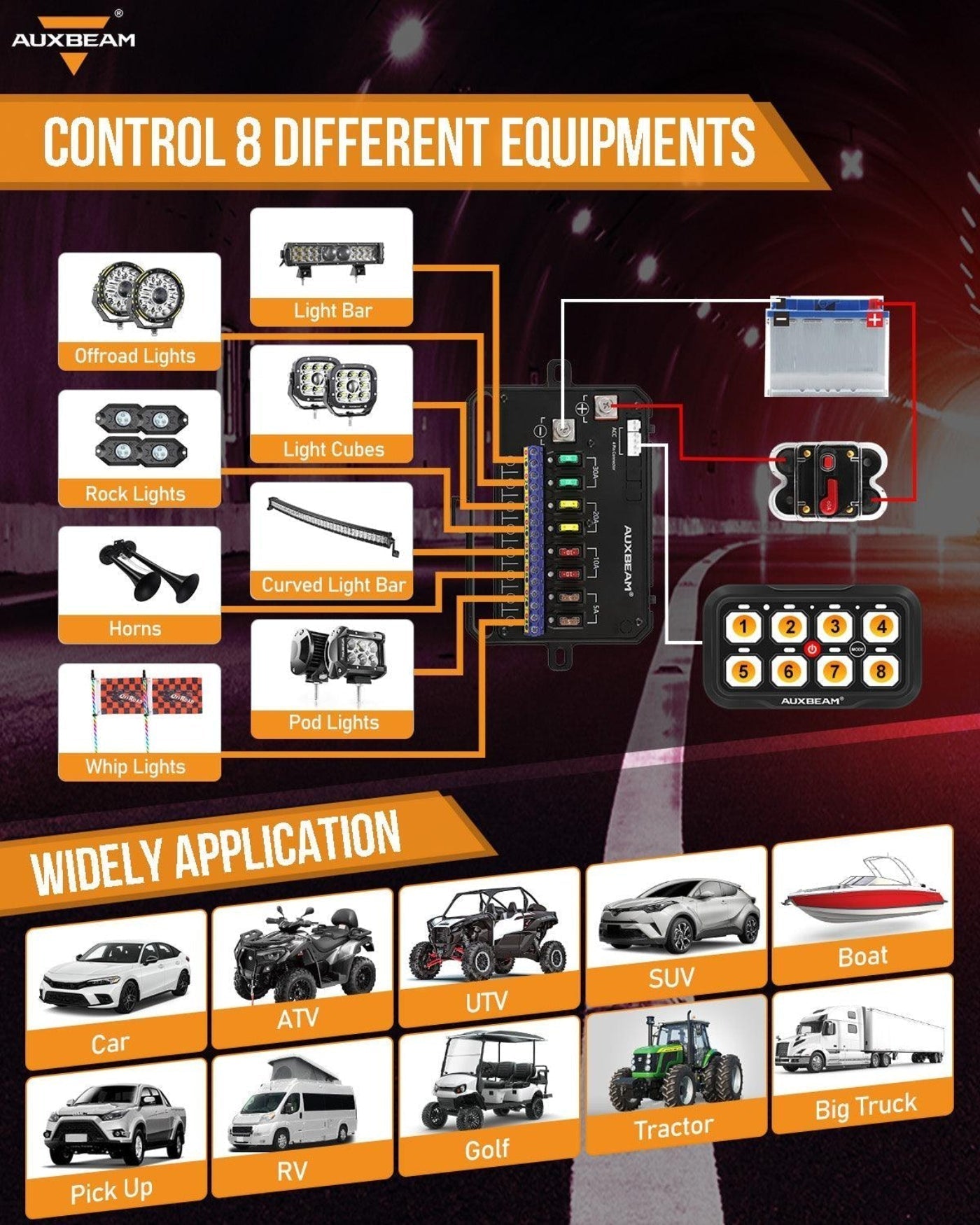

8-Gang one-sided outlet switch panel. It allows you to control up to 8 different LED lights or devices. Command all your vehicle accessories by the tap of your finger.
-

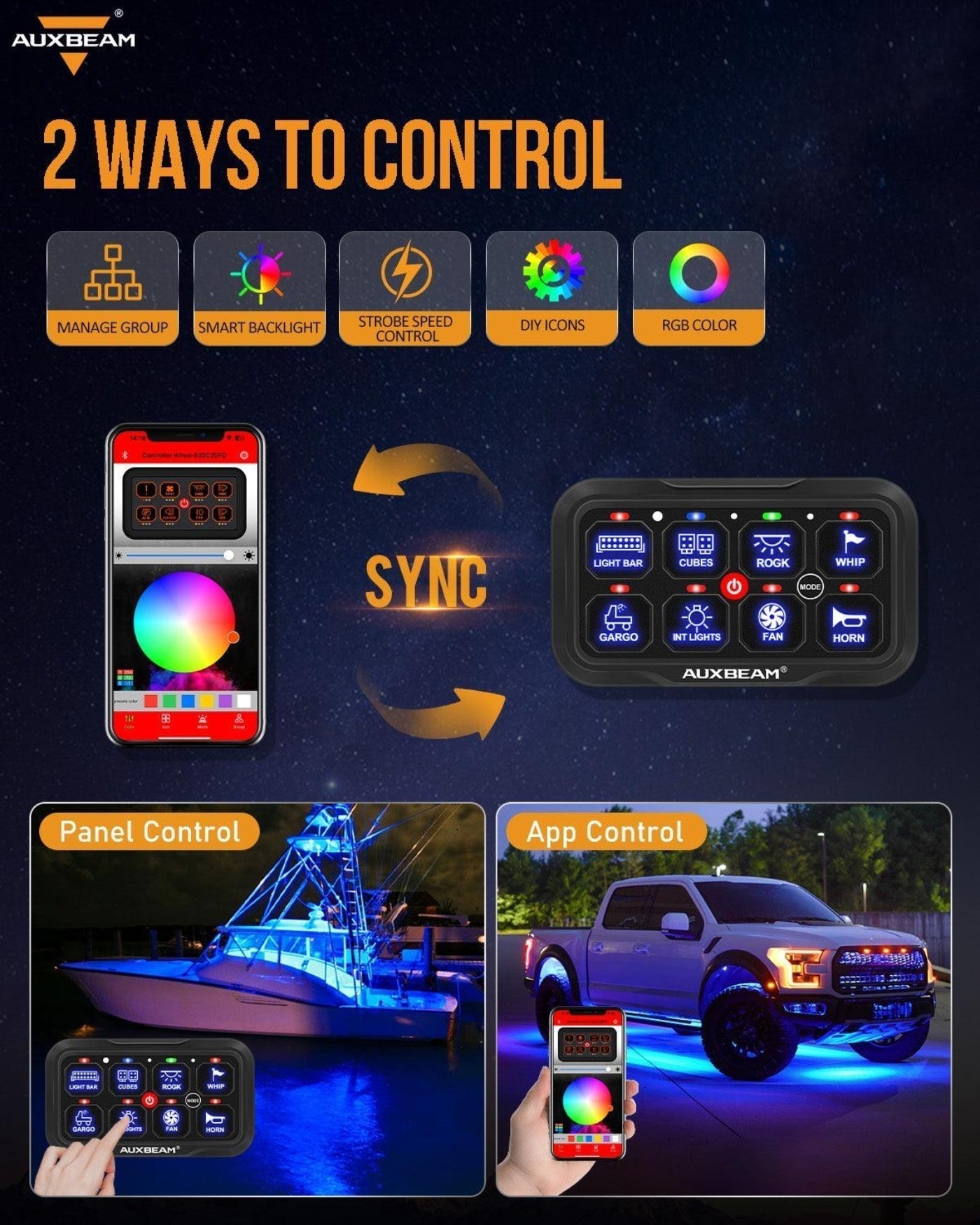

2 control methods - Switch panel & Bluetooth APP, work synchronously. Built-in Bluetooth module allows you to program and control the system anytime & anywhere.
-
3 modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes.
● RED-Toggle, Constant light mode (Great for things like fog lights or driving.
● BLUE-Momentary, Press & hold the button to turn on, then release the button o turn off, just like pressing the horn button.
● GREEN-Pulsed, Flash mode. Press the switch once and the device will flash on/flash off, continuing until the switch is pressed again.
-

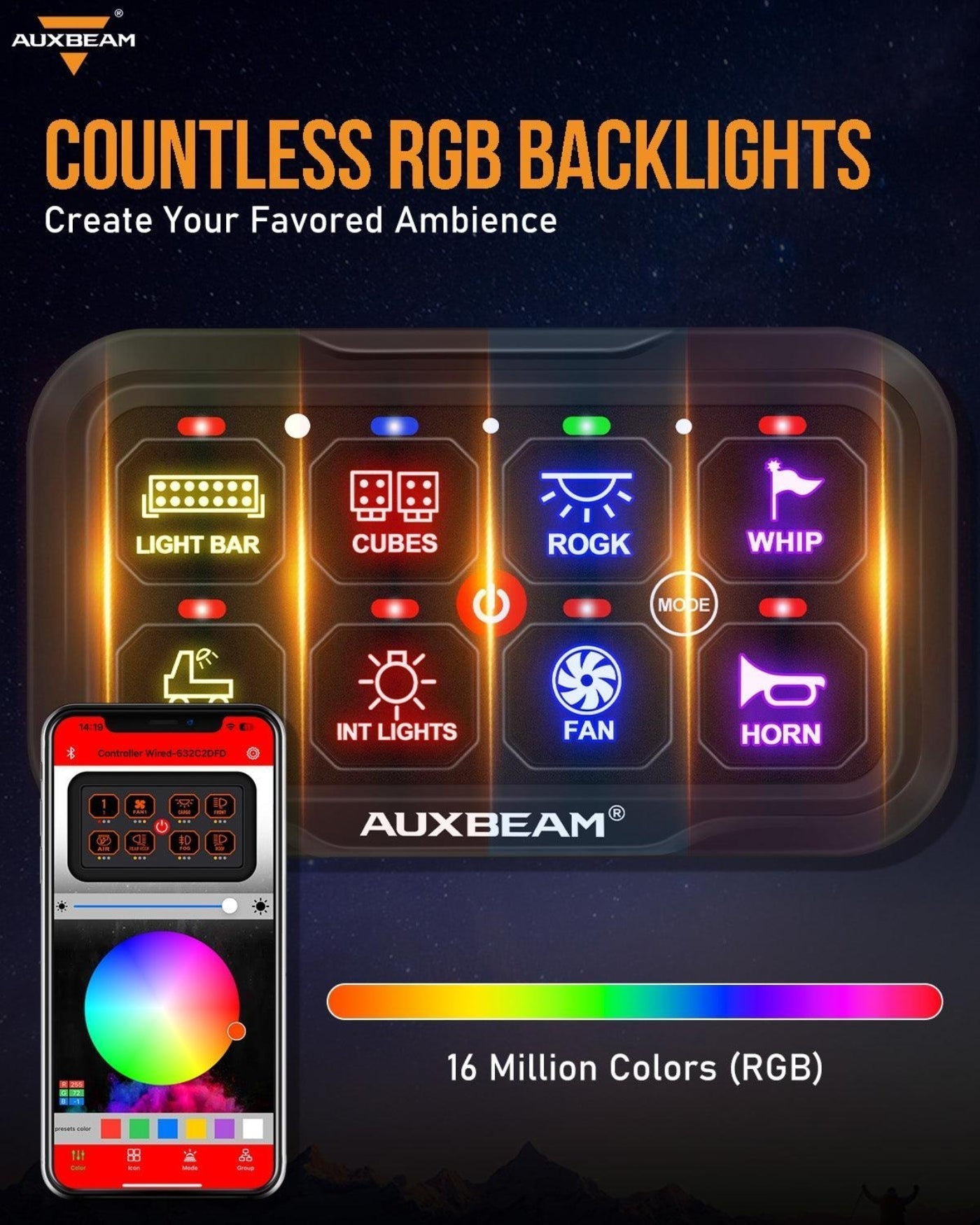

RGB backlight color. Adjust backlight color and brightness to match your vehicle.
-
Backlight brightness automatic dimmable. Automatic adjustment according to the brightness variation of the environment.
-
Assign each switch a logo (60 universal stickers to choose from). Use the provided switch labels to indicate what’s connected to that switch.
-
DIY button icon on APP. 200 default icons or use your own photos from the phone album.
-
Setup group. Manage multiple accessories in your custom groups. Assign 2 or more accessories to the same switch button and then control them at the same time.
-
Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, SxS, Heavy-duty machines, etc.
-
Waterproof IP65, high sensitivity, stability and strong anti-interference ability.
-

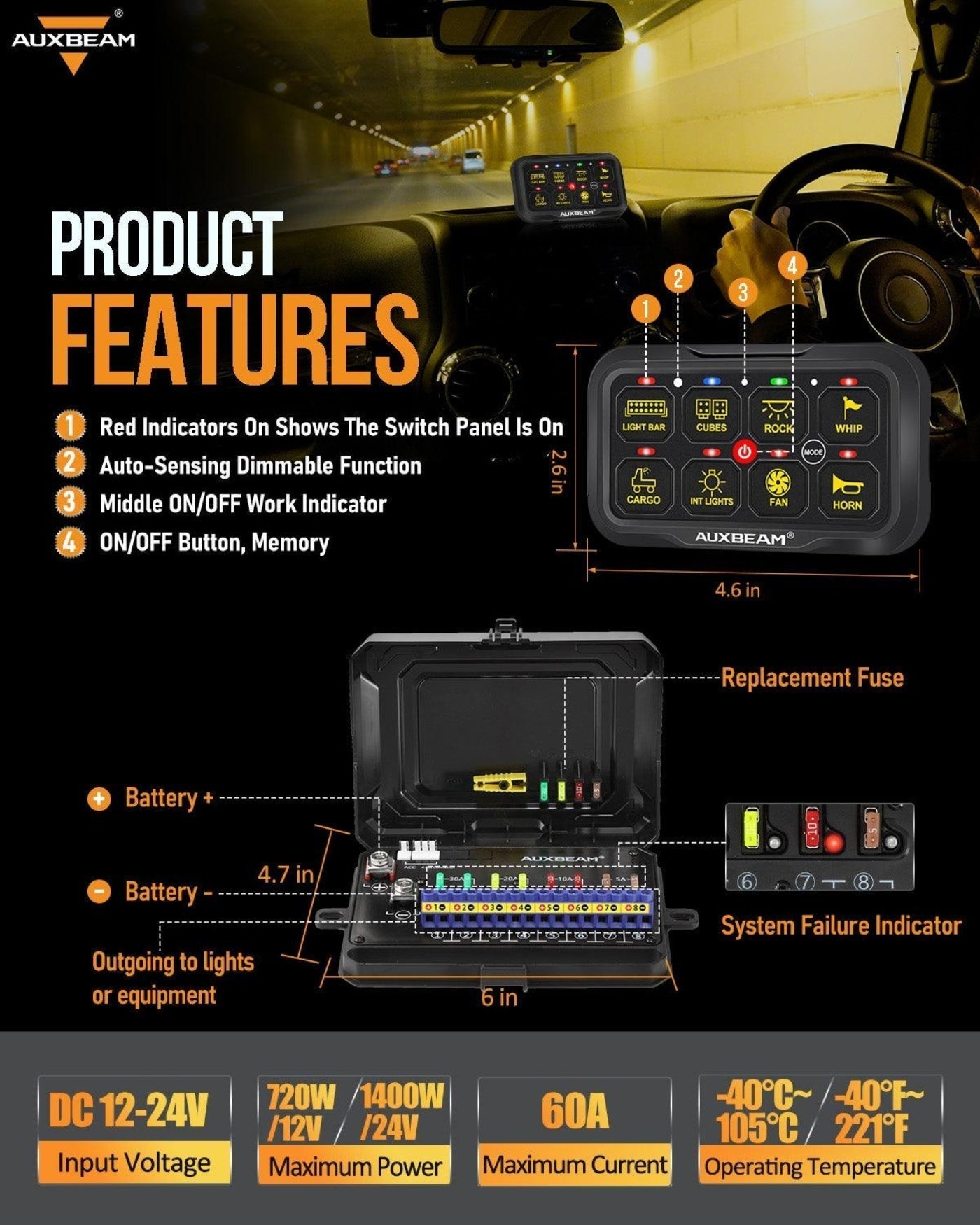

Safety protection. Built-in resettable fuse, reverse polarity protection, over-voltage protection, and over-current protection. The fuse adapter make it easy to connect the control box to the vehicle's fuse box without cutting, splicing or damaging the original wiring in the vehicle.
-
Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily.
-
With 2 types of mounting brackets, you can mount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.
▶3 Inch LED Pods
-

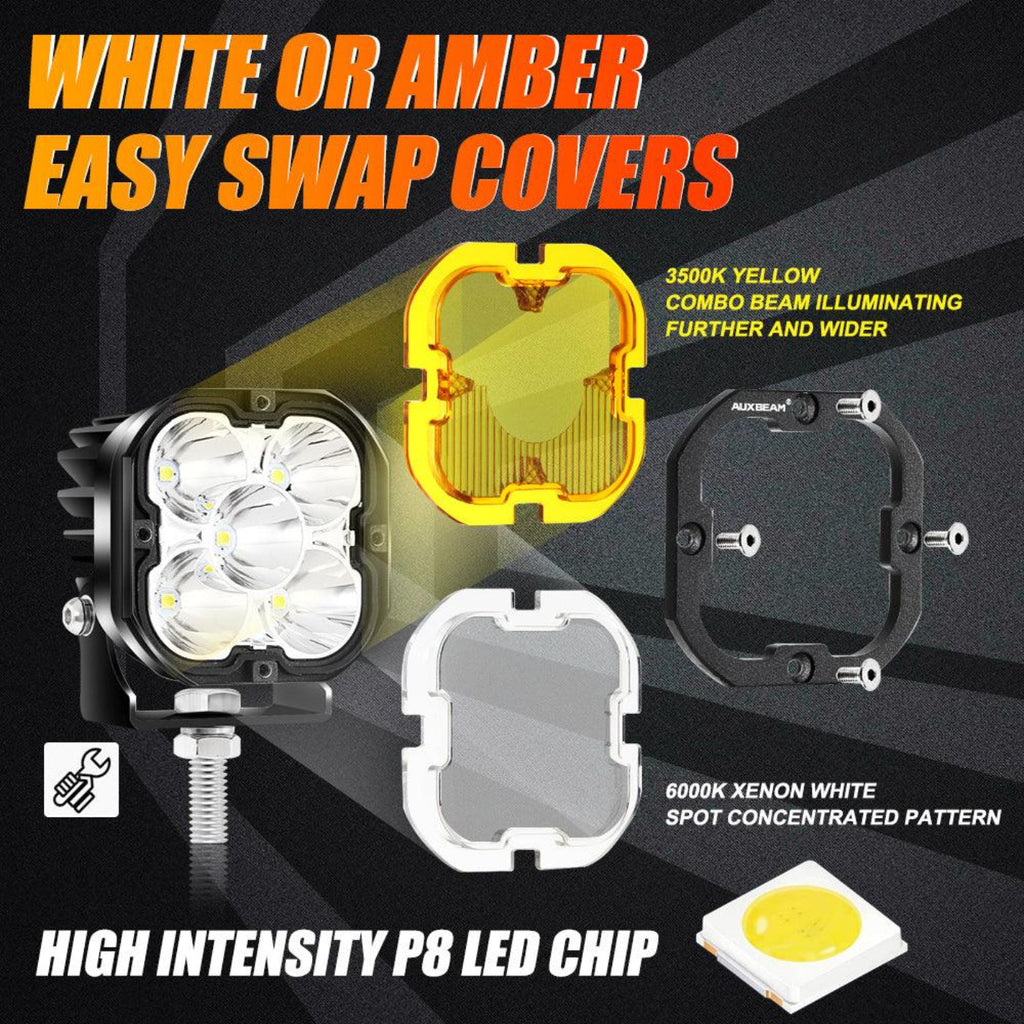

Additional yellow masks for personality modify your pods' color, get strong penetration color temperature for low visibility driving. It allows you to cut through dust, rain, snow, and fog to maintain maximum visibility.
-
P8 LED chips with high intensity and perfect visibility, the perfect option for led driving light.
-

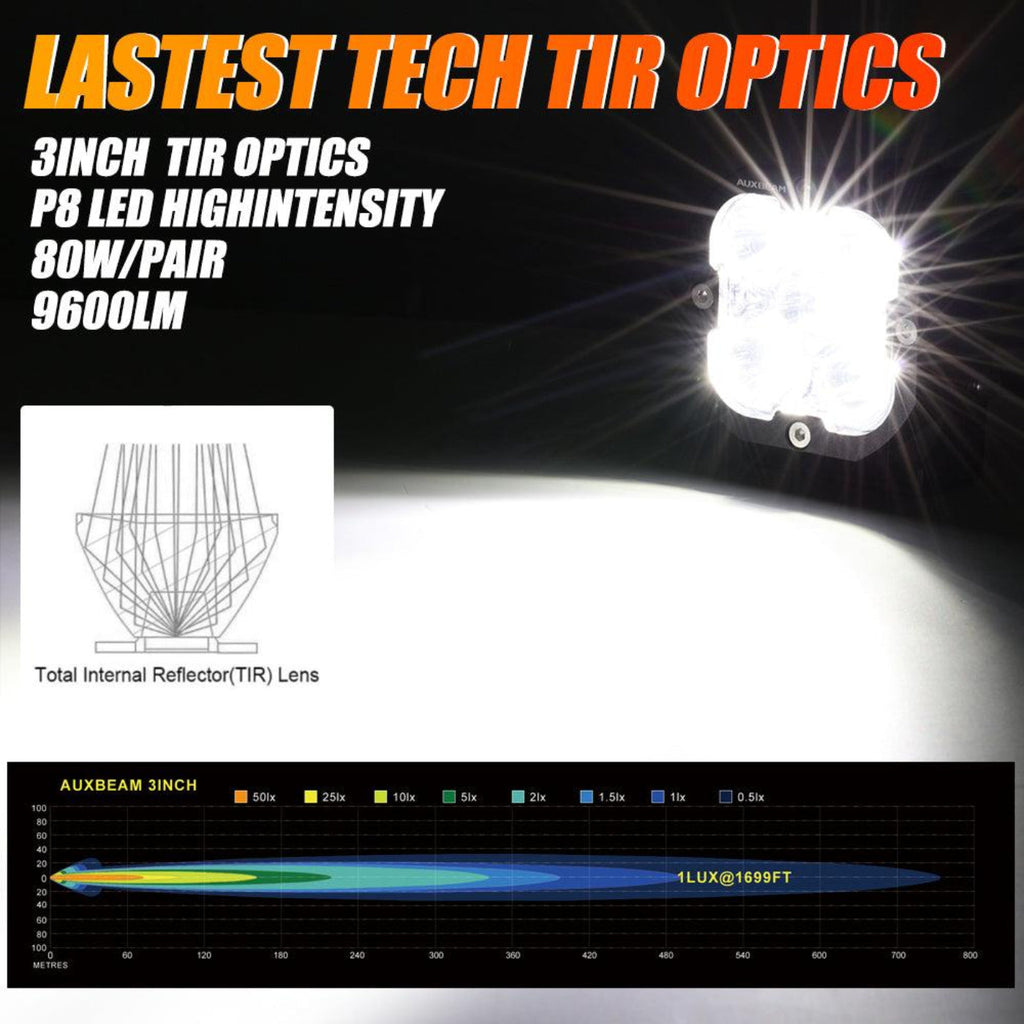

TIR optics design collect all the light from LED improve beam pattern more focused and effective, reducing glare.

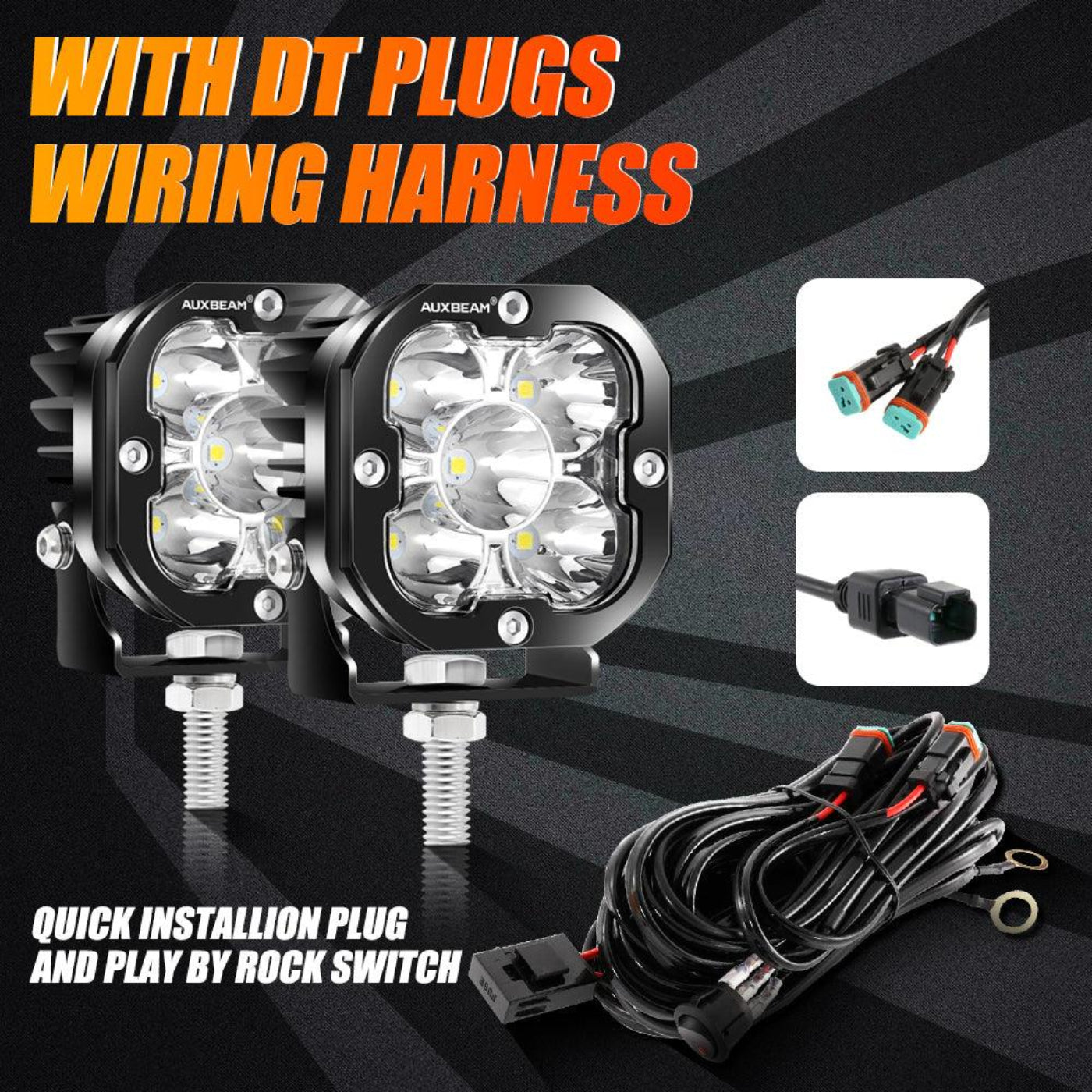

- Comes with 2 lead DT plugs wiring harness kit include fuse relay and switch all in a set, pretty easy and quick hook up.
-

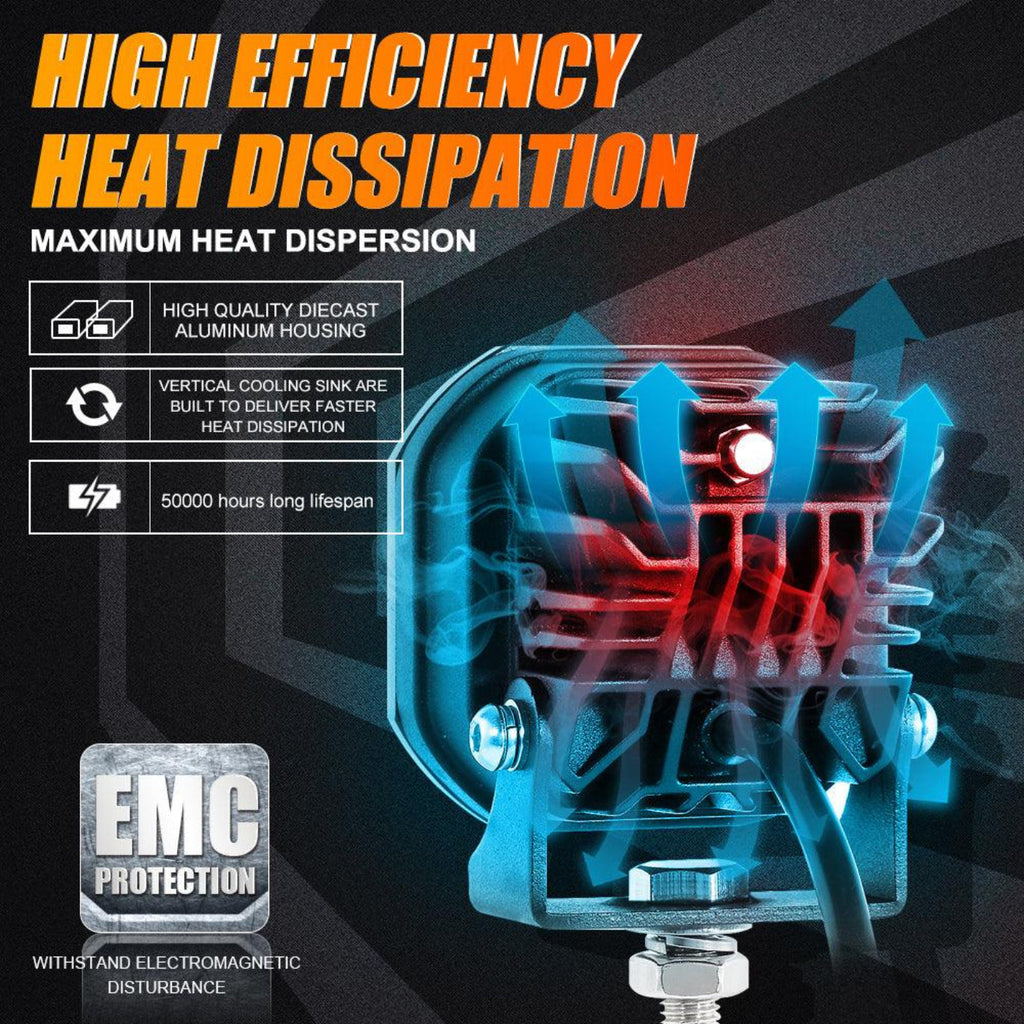

Rugged die-casting aluminum body designed for optimal heat removal, conquers rough off-road environments and resists corrosion.
- Impact-resistant polycarbonate lens. IP68 rated water-resistant.

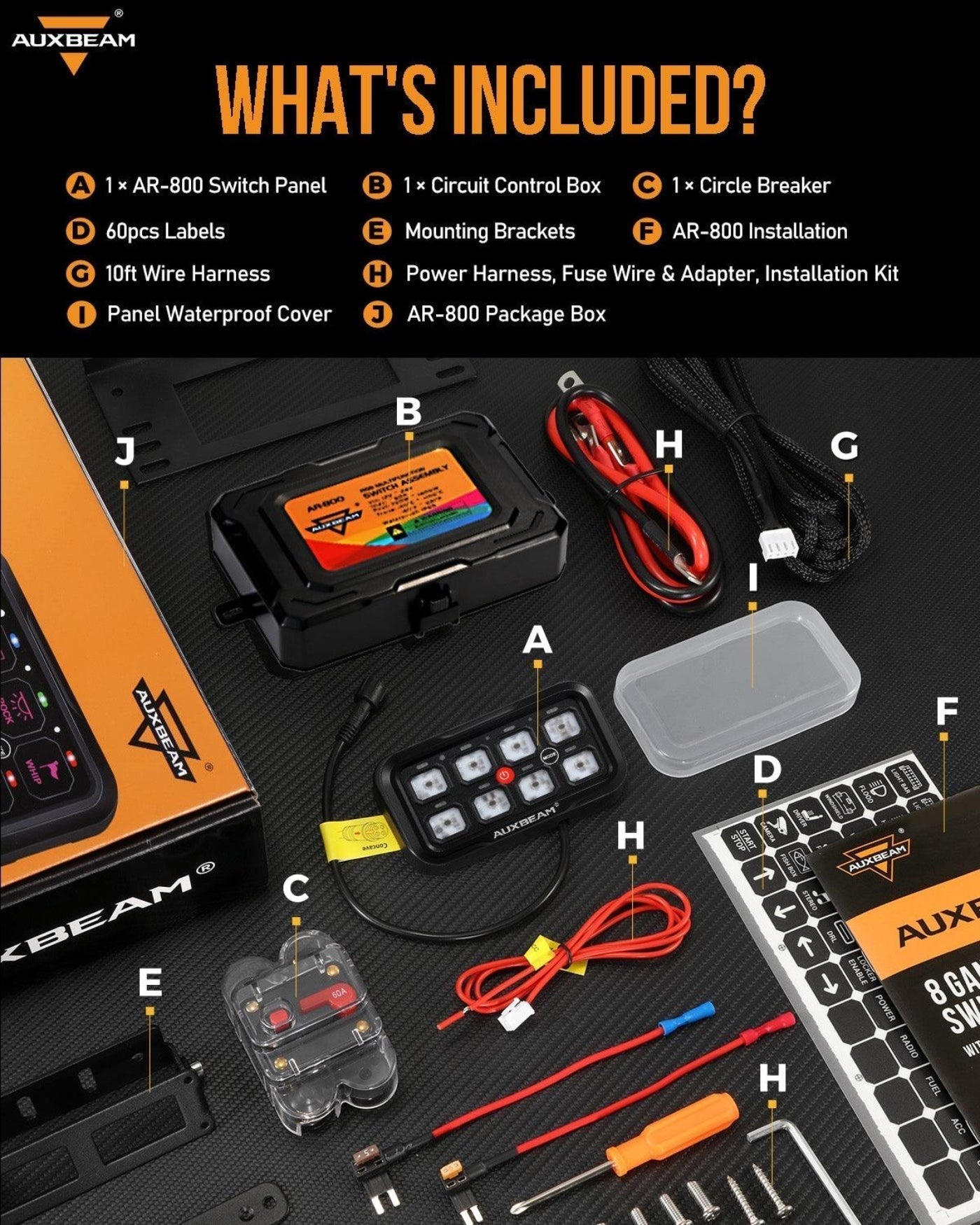

Package Included

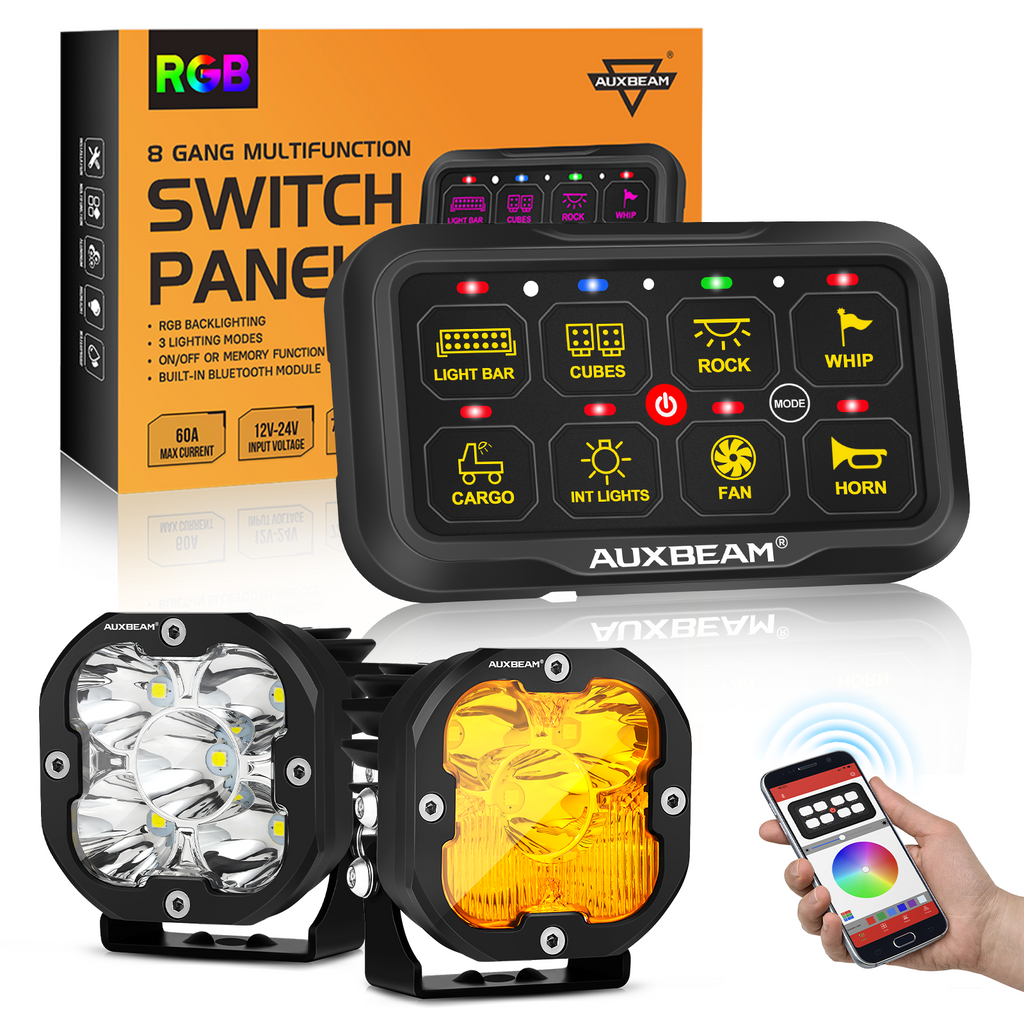

▶AR-800 RGB Switch Panel+3 Inch LED Pods
- 1 Set of 8 Gang RGB Switch Panel (all necessary hardware and wiring harness is included)
- Installation Instructions
- 2 x LED work lights
- 2 x Yellow masks
- 1 x Harness kit DT plugs
What Our Experts Think
The Auxbeam AR-800 RGB Switch Panel + 3 Inch LED Pods with White & Yellow Cover is a top choice for those seeking enhanced control and visibility for their vehicle. Here’s why it’s a great pick:
-
Smart RGB Switch Panel: The AR-800 RGB Switch Panel allows easy control of multiple accessories with customizable RGB backlighting for visibility and style.
-
Dual-Color 3" LED Pods: These 3-inch LED pods feature both white and yellow covers, providing versatile lighting options for different driving conditions, from clear to foggy weather.
-
Durable & Reliable: Built to withstand harsh environments with a rugged, weatherproof design that ensures long-lasting performance.
-
Easy Installation: Includes everything you need for a straightforward setup, including wiring and mounting options.
-
Customizable Control: The RGB switch panel allows you to easily toggle between different settings, providing convenient, customizable control at your fingertips.
Q&A
Q: What’s included in the Auxbeam AR-800 RGB Switch Panel kit?
A: This kit includes the AR-800 RGB switch panel with customizable controls and two 3-inch LED pods featuring white and yellow covers for versatile lighting.
Q: What can the AR-800 RGB switch panel control?
A: The AR-800 switch panel allows you to control various 12V/24V accessories, such as lights, winches, compressors, and other vehicle devices with ease, all through the app or remote.
Q: What makes the 3-inch LED pods unique?
A: The 3-inch LED pods come with both white and yellow covers, allowing you to choose between bright white light for maximum visibility and yellow light for foggy or off-road conditions.
Q: Is the switch panel compatible with mobile devices?
A: Yes, the AR-800 switch panel supports app and remote control, allowing you to customize settings and light modes directly from your smartphone or via the included remote.
Q: Are these LED pods suitable for off-roading?
A: Yes, the 3-inch LED pods are built for rugged environments, providing reliable illumination for off-road trails and challenging weather conditions.
Q: How easy is the installation process?
A: The AR-800 switch panel comes with a plug-and-play harness for quick and easy installation, and the 3-inch LED pods include mounting hardware for a simple setup.
Maintenance Tips
-
Clean the Switch Panel – Use a dry, soft cloth to clean the RGB switch panel and ensure buttons remain responsive.
-
Check LED Pods – Regularly clean the LED pods with a damp cloth to remove dust and debris, ensuring optimal brightness.
-
Inspect Covers – Make sure the white and yellow covers on the LED pods are securely in place and free from cracks or damage.
-
Wiring Inspection – Check all wiring connections for wear, corrosion, or loose fittings, especially around the switch panel and pods.
-
Moisture Prevention – Keep the switch panel and LED pods dry and check for condensation, resealing if needed.
-
Tighten Mounts – Ensure LED pods are securely mounted to prevent vibrations or movement while driving.
