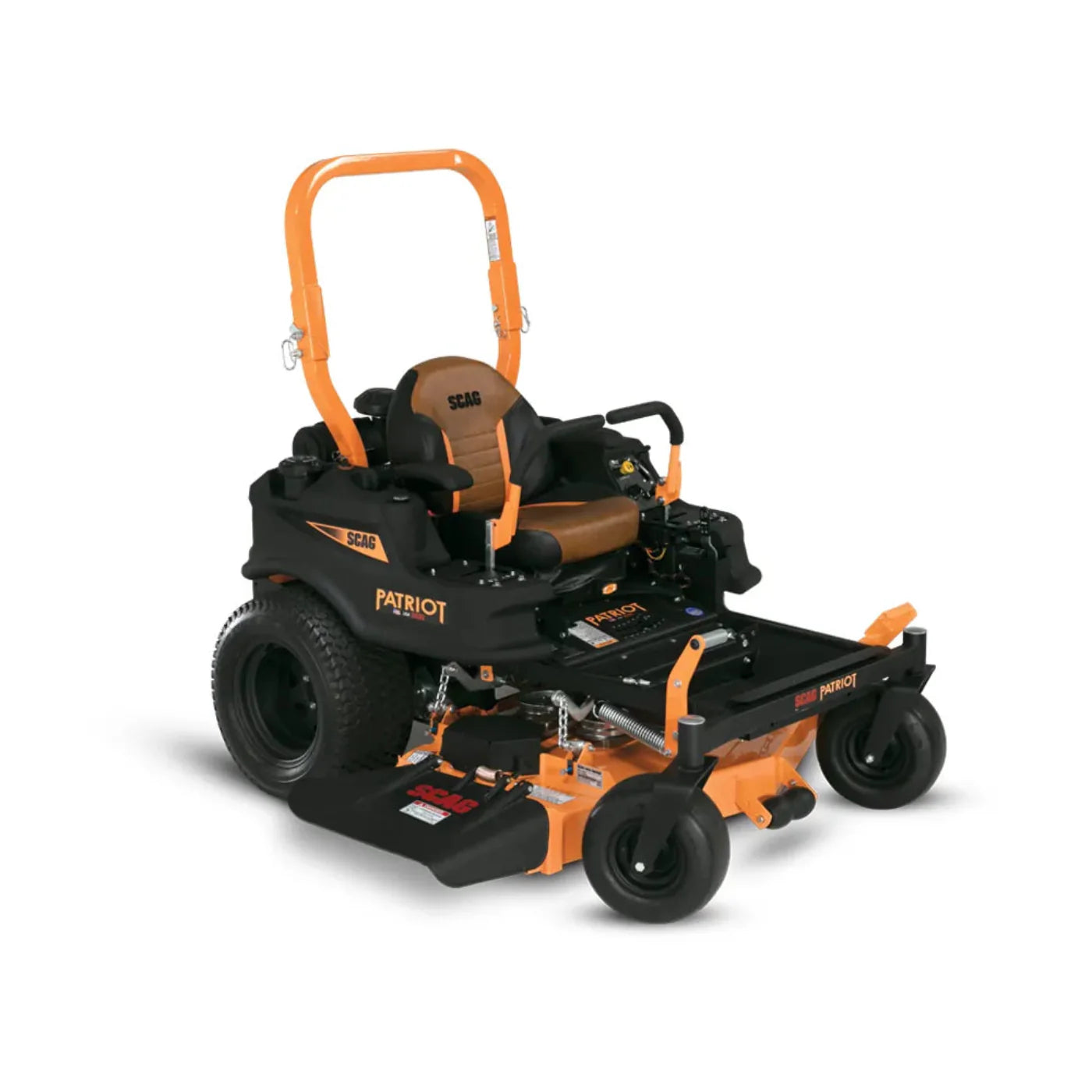

Scag 61in Patriot Commercial Zero-Turn Lawn Mower - SPZ-61H-23FX
Built to deliver low-maintenance and high-performance operation, the Patriot™ makes a statement; it says you’re a hardworking lawn care professional that believes in getting a job done right. In other words, this machine is built to make money and leave your customers—and their neighbors—saluting your handiwork.
A one-piece, solid, forged rotor means no chance of internal parts separating. The rotors also have an even wall thickness around the coil which gives optimum flux distribution, maximizing torque.
All models include our special long-life grease which has shown a significant improvement in life over other standard high-temperature greases.
When the rotor and armature have worn away, a simple adjustment can be made to bring the clutch back into specification.
Specifications
| Total Fuel Capacity |
6.5 gallons |
| Drive Tires |
22" x 10.5"-12" (52"), 24" x 12"-12" (61") |
| Caster Tires |
13" x 6.5"-6" |
| Seat |
Torsion-spring suspension seat |
| Drive System Type |
Hydro-Gear ZT3100 Transaxle (52"), Hydro-Gear ZT3400 Transaxle (61") |
| Pumps |
ZT3100 Internal Pump (10 cc), ZT3400 Internal Pump (12 cc) |
| Motors |
Internal Motor (16 cc) |
| Forward Ground Speed |
8.5 mph (52"), 10 mph (61") |
| Reverse Ground Speed |
5 mph |
| Parking Brake |
Foot-operated pedal |
| Cutting Widths |
52", 61" |
| Type |
Hero Cutter Deck |
| Cutting Height |
1.5"-5" in 0.25" increments |
| Deck Lift |
Foot-operated pedal |
| Deck Construction |
Dual-plate cutter deck with 2 steel plates, reinforcement plate at spindles |
| Spindles |
Aluminum housing with sealed ball bearings |
What our Experts Think
-
High-Power Commercial Engine: 23HP engine delivers consistent performance for large-scale mowing.
-
61” Cutting Deck: Wide deck ensures efficient coverage for expansive lawns and commercial properties.
-
Zero-Turn Maneuverability: Exceptional handling for tight turns, obstacles, and detailed landscaping.
-
Durable Construction: Heavy-duty frame designed for long-lasting commercial use.
-
Smooth Operation: Advanced suspension and ergonomic controls reduce operator fatigue.
-
Precision Cutting: Delivers clean, professional results on diverse terrains and grass types.
-
Contractor-Ready: Perfect for landscapers seeking speed, efficiency, and durability in one mower.
Q&A
Q: What type of mower is this?
A: Commercial-grade zero-turn mower designed for maximum efficiency on large properties.
Q: What engine does it use?
A: Powered by a 23HP commercial-grade engine for consistent performance.
Q: What is the cutting width?
A: Features a 61-inch cutting deck for fast mowing of expansive lawns.
Q: Is it suitable for commercial use?
A: Yes, built with heavy-duty construction for professional landscapers.
Q: Does it have zero-turn capability?
A: Yes, allows precise maneuvering around obstacles and tight spaces.
Q: Is it comfortable for long use?
A: Yes, ergonomic controls and stand-on design provide excellent visibility and operator comfort.
Q: What terrains can it handle?
A: Ideal for commercial lawns, large estates, and uneven or challenging terrain.
Maintenance Tips
-
Engine care: Regularly check and change oil; replace air and fuel filters for optimal 23HP engine performance.
-
Blade maintenance: Sharpen blades frequently and inspect for wear or damage.
-
Deck cleaning: Remove grass buildup after each use to prevent corrosion and maintain cutting efficiency.
-
Belts & pulleys: Inspect for cracks, wear, or looseness; replace when necessary.
-
Tire check: Maintain proper pressure for stability and smooth operation.
-
Fuel system: Use fresh fuel; avoid storing fuel long-term in the tank.
